Cover Disassembly Note

  1. Pull off the tab A with a screwdriver and press the tab B downward.

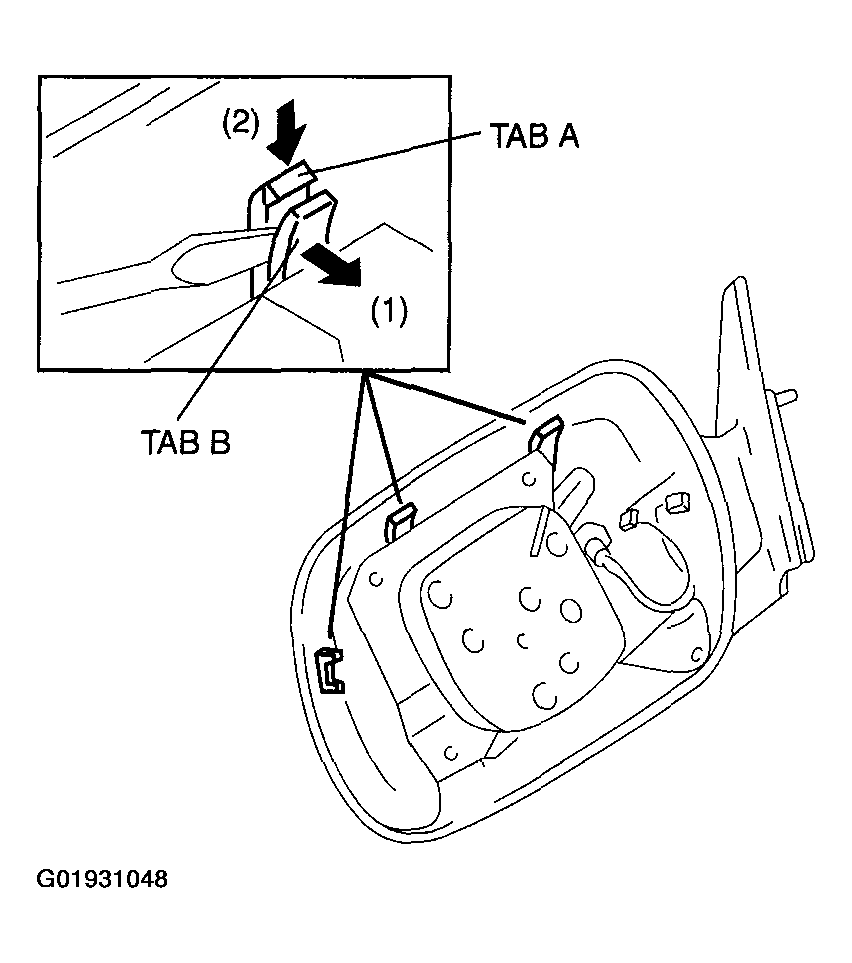

    Fig 1: Removing Cover
    G01931048Courtesy of MAZDA MOTORS CORP.
