Power Outside Mirror Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the figure below.
  2. Assemble in the reverse order of disassembly.

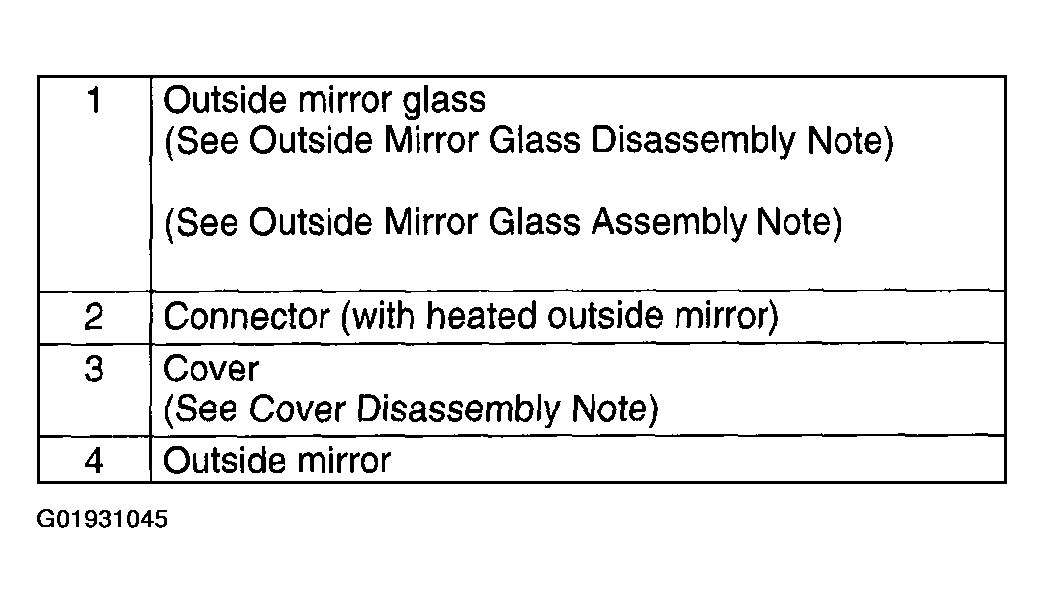

    Fig 1: Power Outside Mirror Disassemble Order Table
    G01931045Courtesy of MAZDA MOTORS CORP.

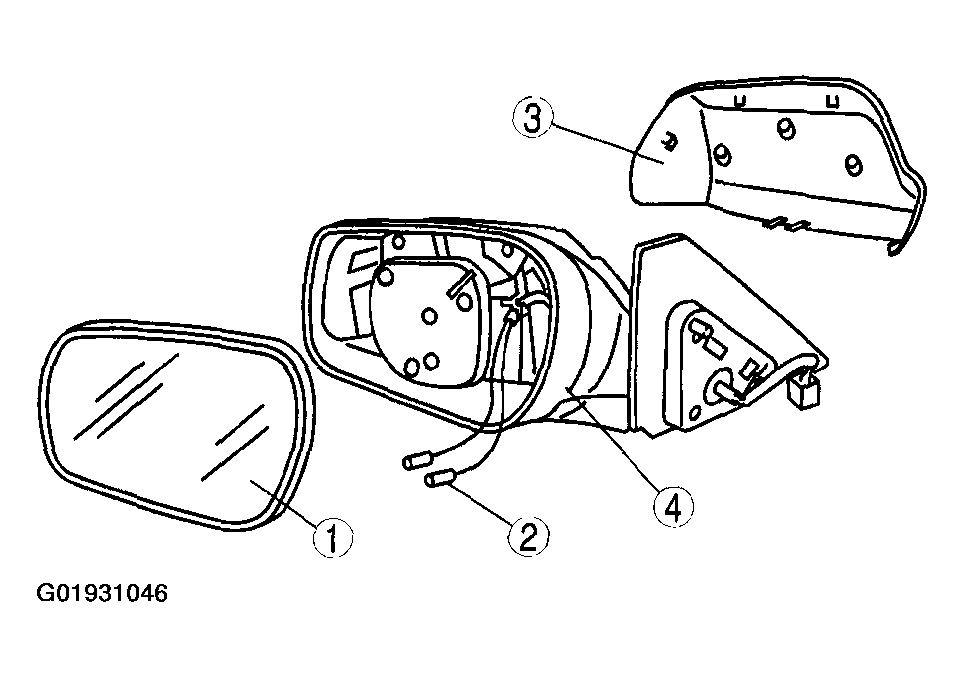

    Fig 2: Identifying Power Outside Mirror Components
    G01931046Courtesy of MAZDA MOTORS CORP.
