Outside Mirror Glass Disassembly Note

  1. Press area A of the glass so that area B moves outward.
  2. Insert a screwdriver into the notch and remove the glass from the mirror base.

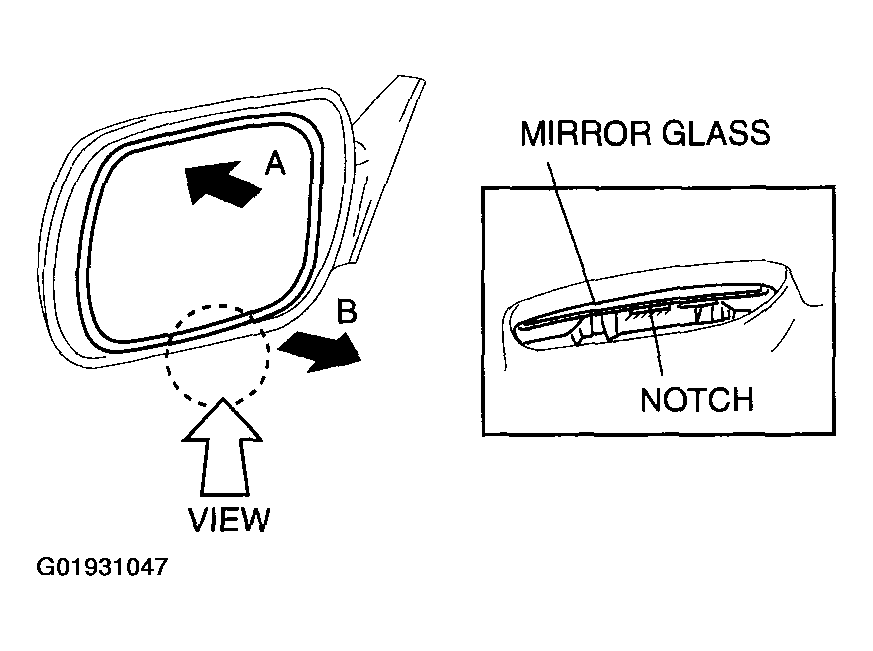

    Fig 1: Remove Glass From Mirror Base
    G01931047Courtesy of MAZDA MOTORS CORP.
