Power Window Motor Inspection

Apply battery positive voltage to the power window motor terminals and inspect the power window motor operation.
- If not as specified, replace the power window motor.

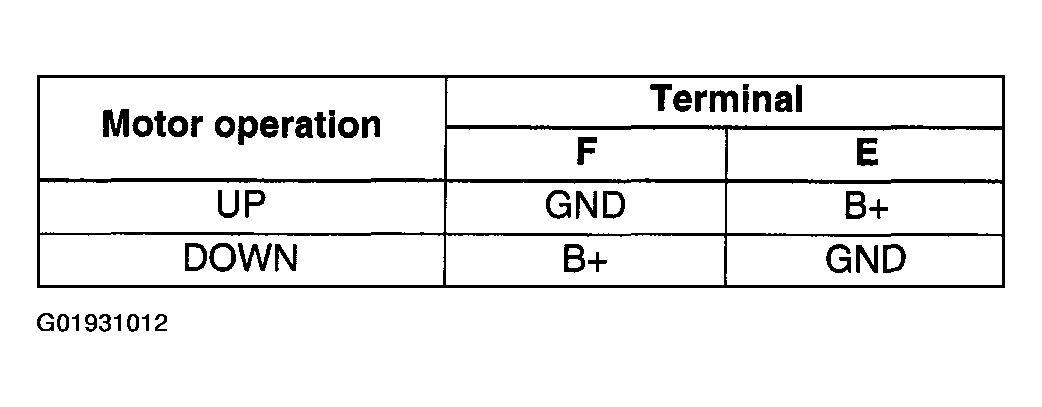

Fig 1: Power Motor Terminals And Operation Chart
Courtesy of MAZDA MOTORS CORP.

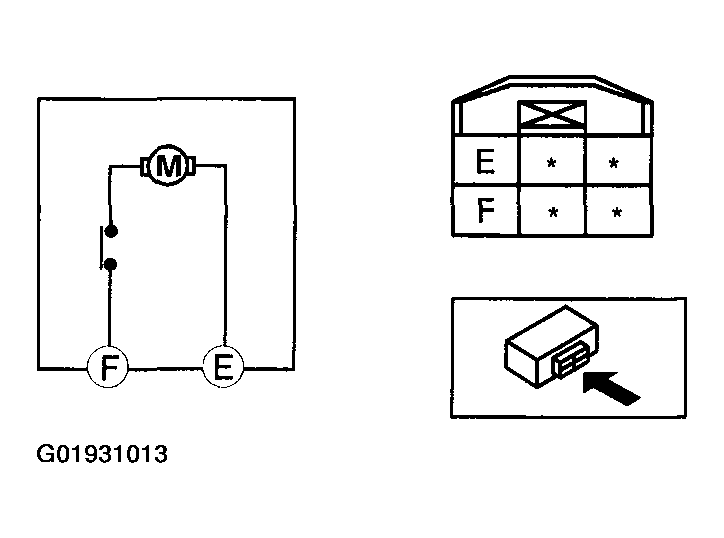

Fig 2: Inspecting Power Window Motor Operation
Courtesy of MAZDA MOTORS CORP.
