Windshield Removal: Notes

  1. Remove the rearview mirror.
  2. Remove the cowl grille.
  3. Remove the headliner.
  4. Apply protective tape along the edge of the body to protect it from damage.
  5. Apply protective tape to the dashboard to protect it from damage.
  6. Cut the lip of the windshield molding using a razor.
    WARNING:
    • Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
    NOTE:
    • The windshield molding is a replacement part.

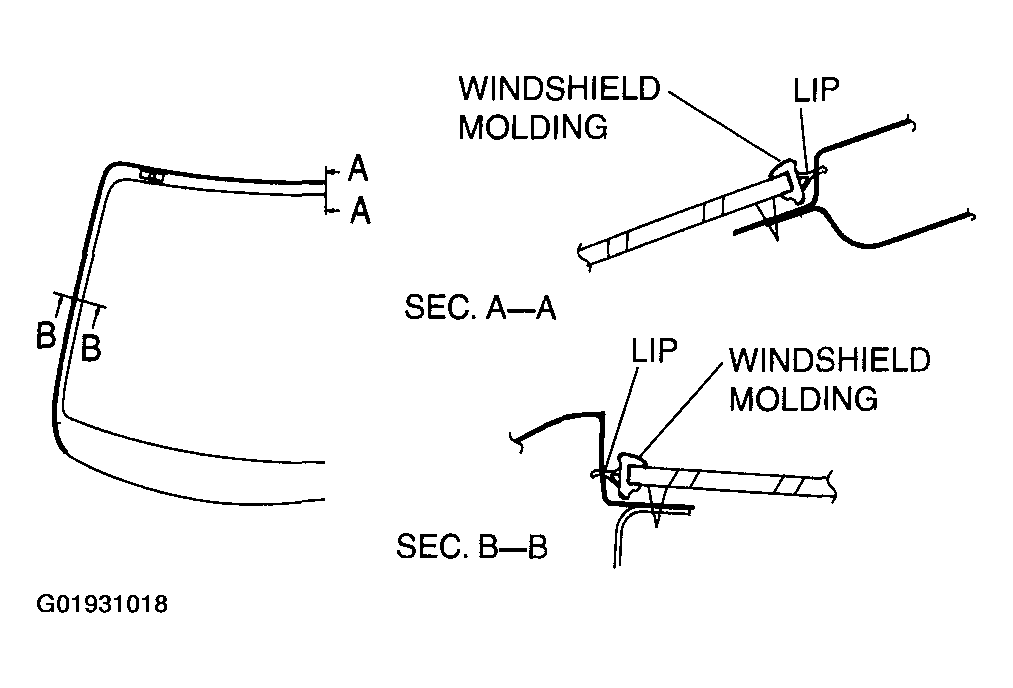

    Fig 1: Identifying Lip Of Windshield Molding
    G01931018Courtesy of MAZDA MOTORS CORP.
