TCS Off Switch Inspection

  1. Remove the TCS OFF switch.
  2. Inspect for continuity between the TCS OFF switch terminals using an ohmmeter.
    • If not as specified, replace the TCS OFF switch.

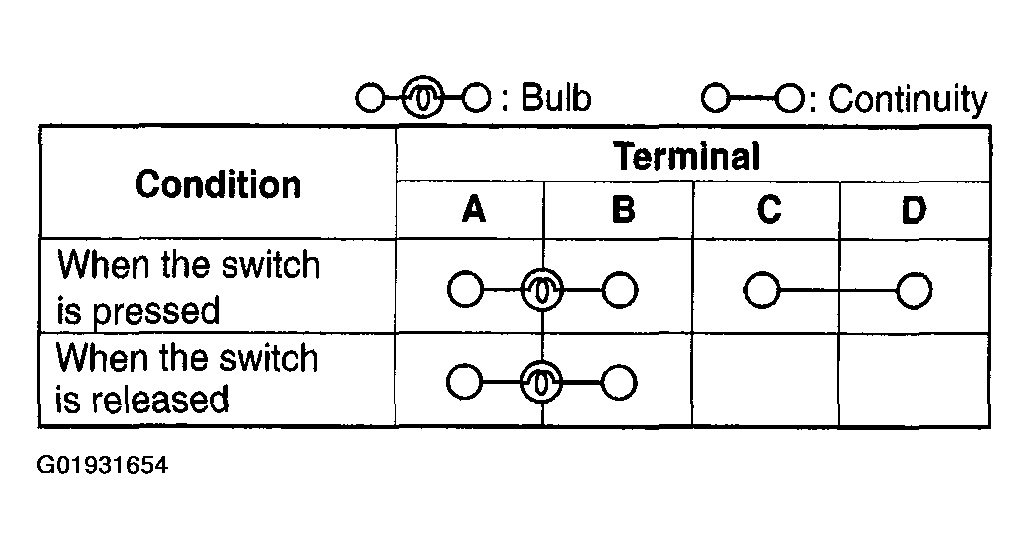

    Fig 1: TCS Off Switch Terminal Continuity Specifications
    G01931654Courtesy of MAZDA MOTORS CORP.

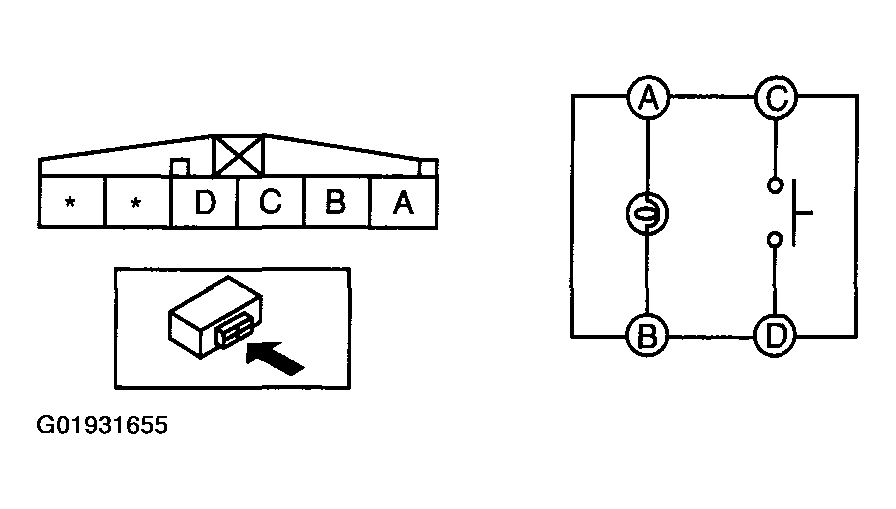

    Fig 2: TCS Off Switch Connector View & Terminal Identification
    G01931655Courtesy of MAZDA MOTORS CORP.
