Generators & Regulators: Overhaul

Overhaul procedure is not available from manufacturer. To aid in overhaul, refer to illustrations. See Fig 1 or Fig 2 .

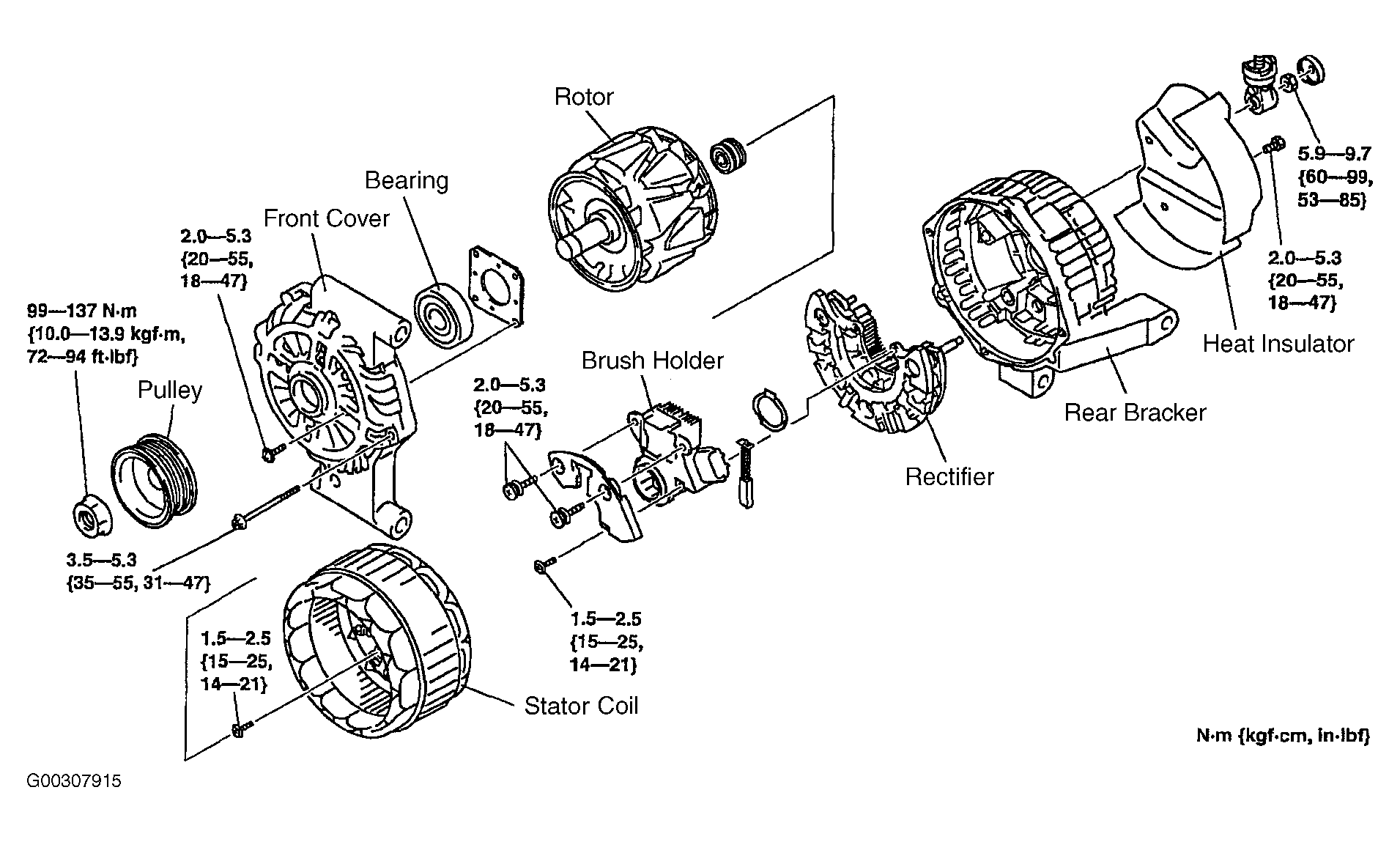

Fig 1: Exploded View Of Generator (2.3L)

Courtesy of MAZDA MOTORS CORP.

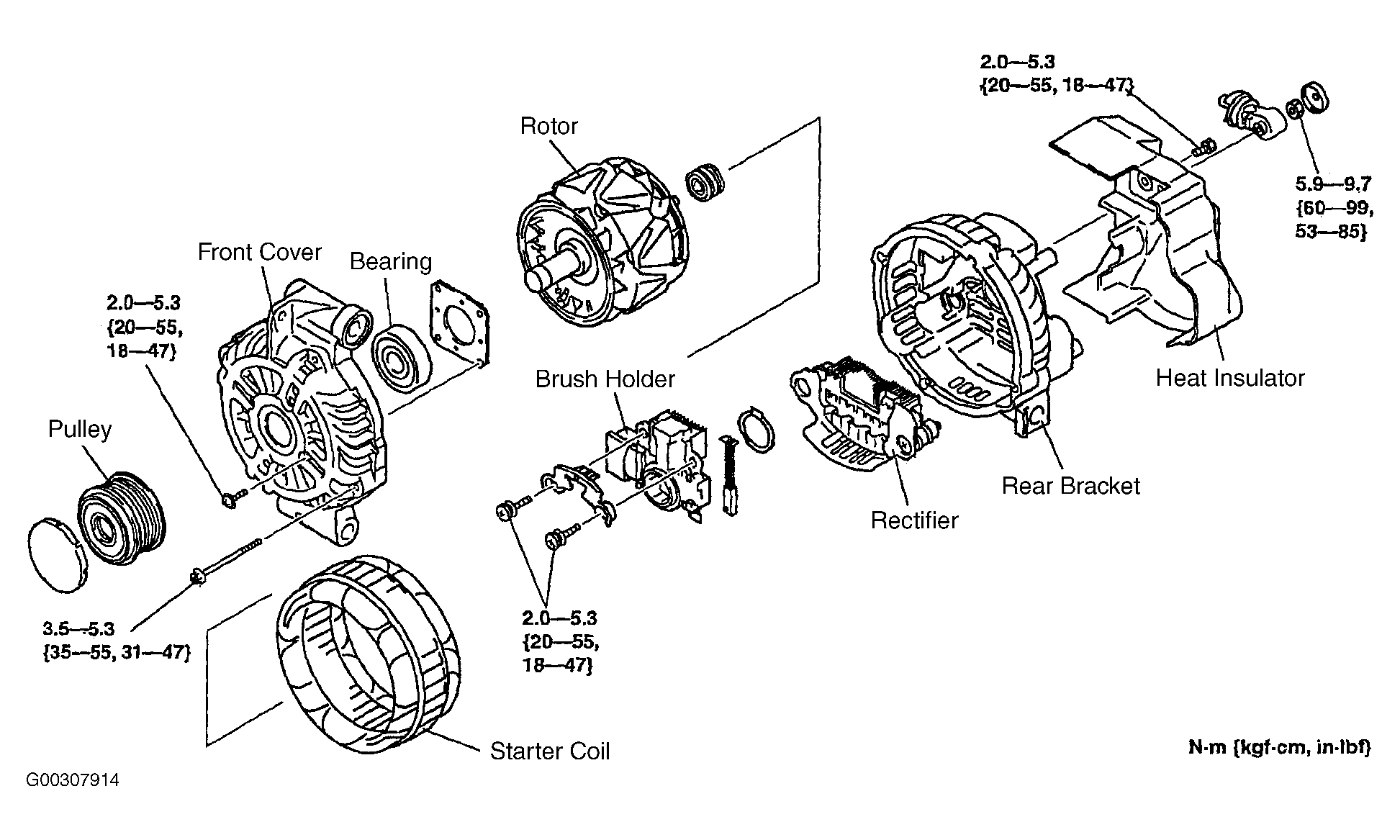

Fig 2: Exploded View Of Generator (3.0L)

Courtesy of MAZDA MOTORS CORP.
