Powertrain Control Module (PCM)

  1. Check display of DTC U0121 and/or U0155, using scan tool. See Fig 1.

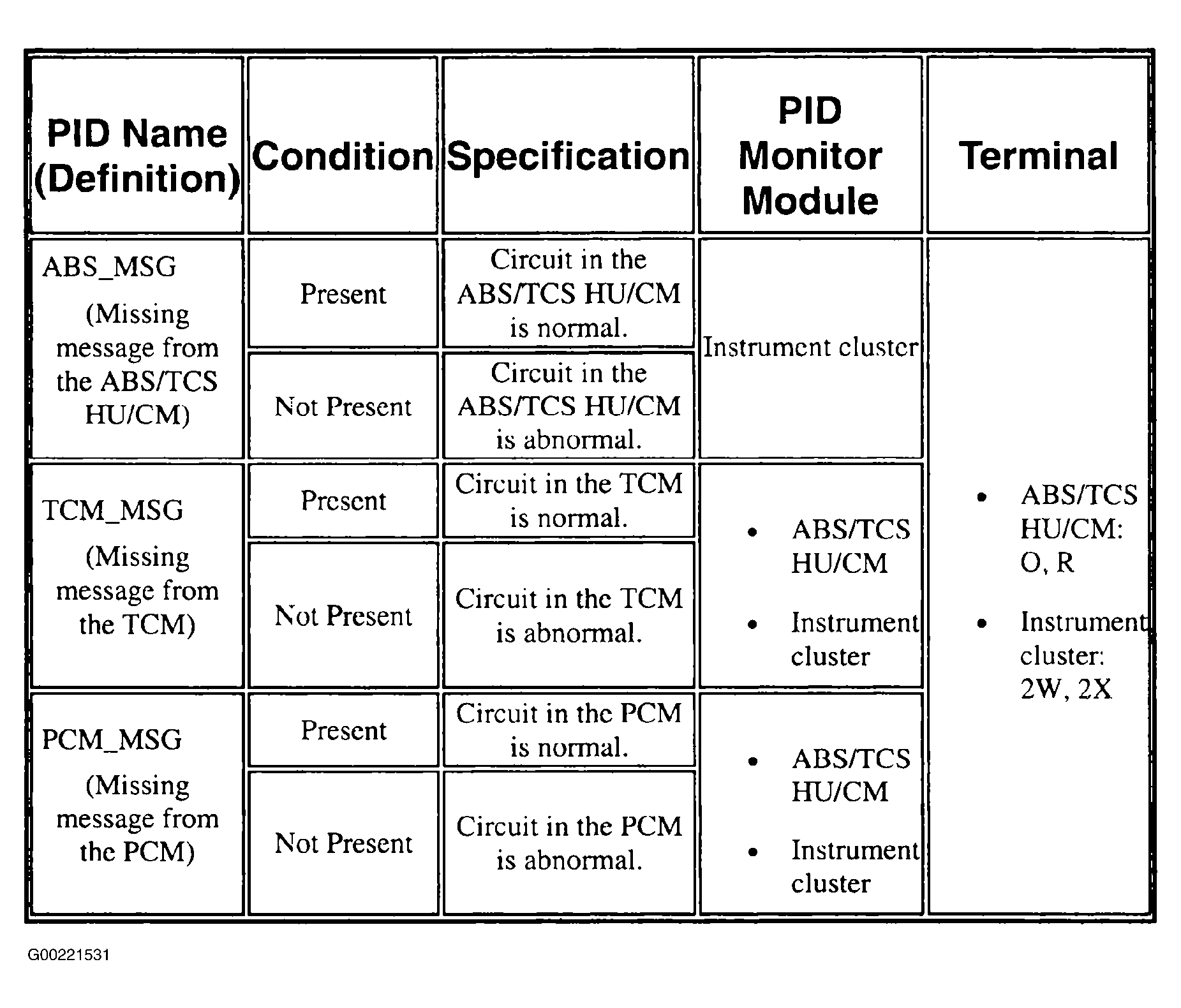

    Fig 1: DTC Table (Multiplex Communication System)
    G00221531Courtesy of MAZDA MOTORS CORP.

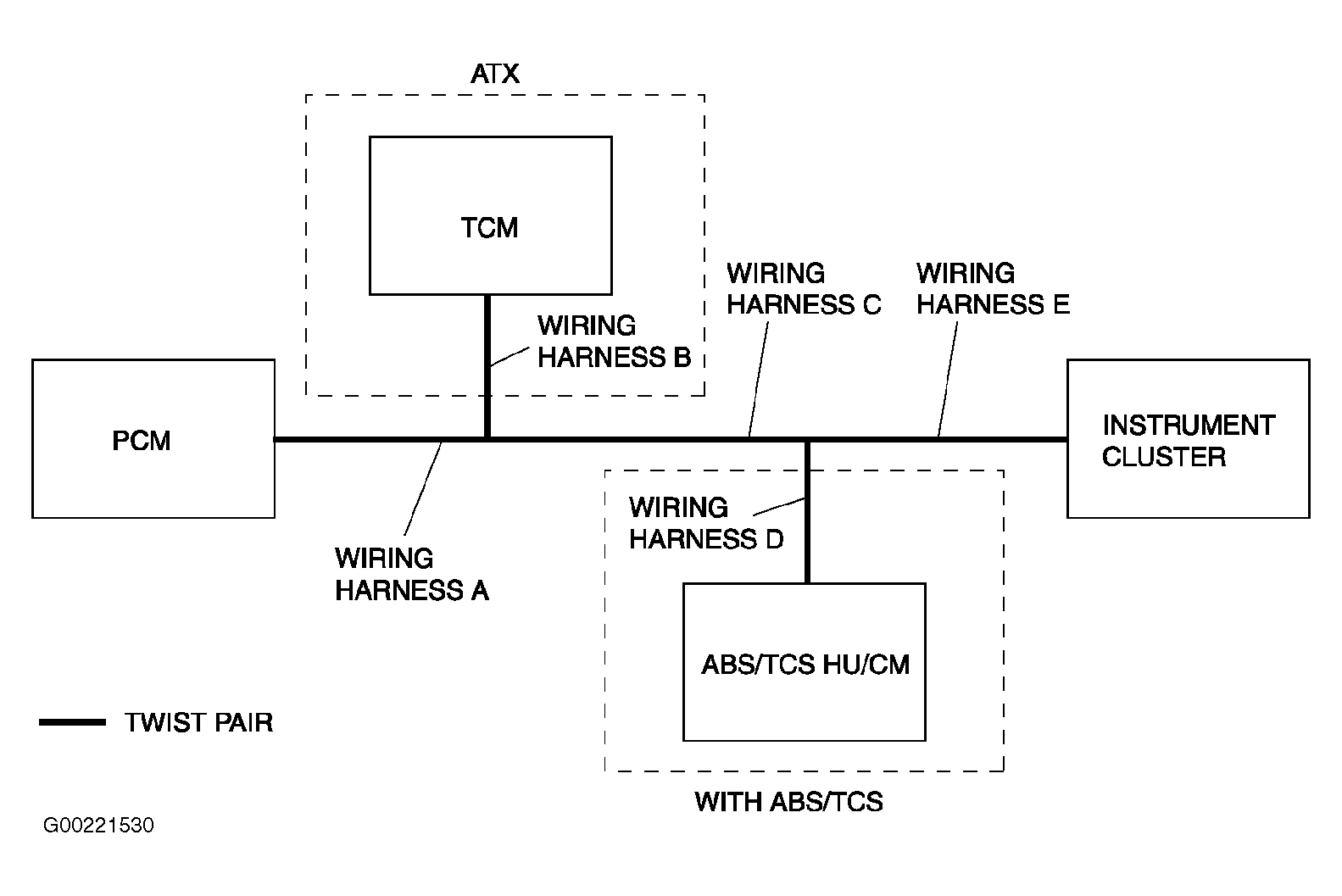

  2. Referring to PCM Malfunction Locator Table, determine malfunctioning part of CAN system. See Figure and Fig 2 .

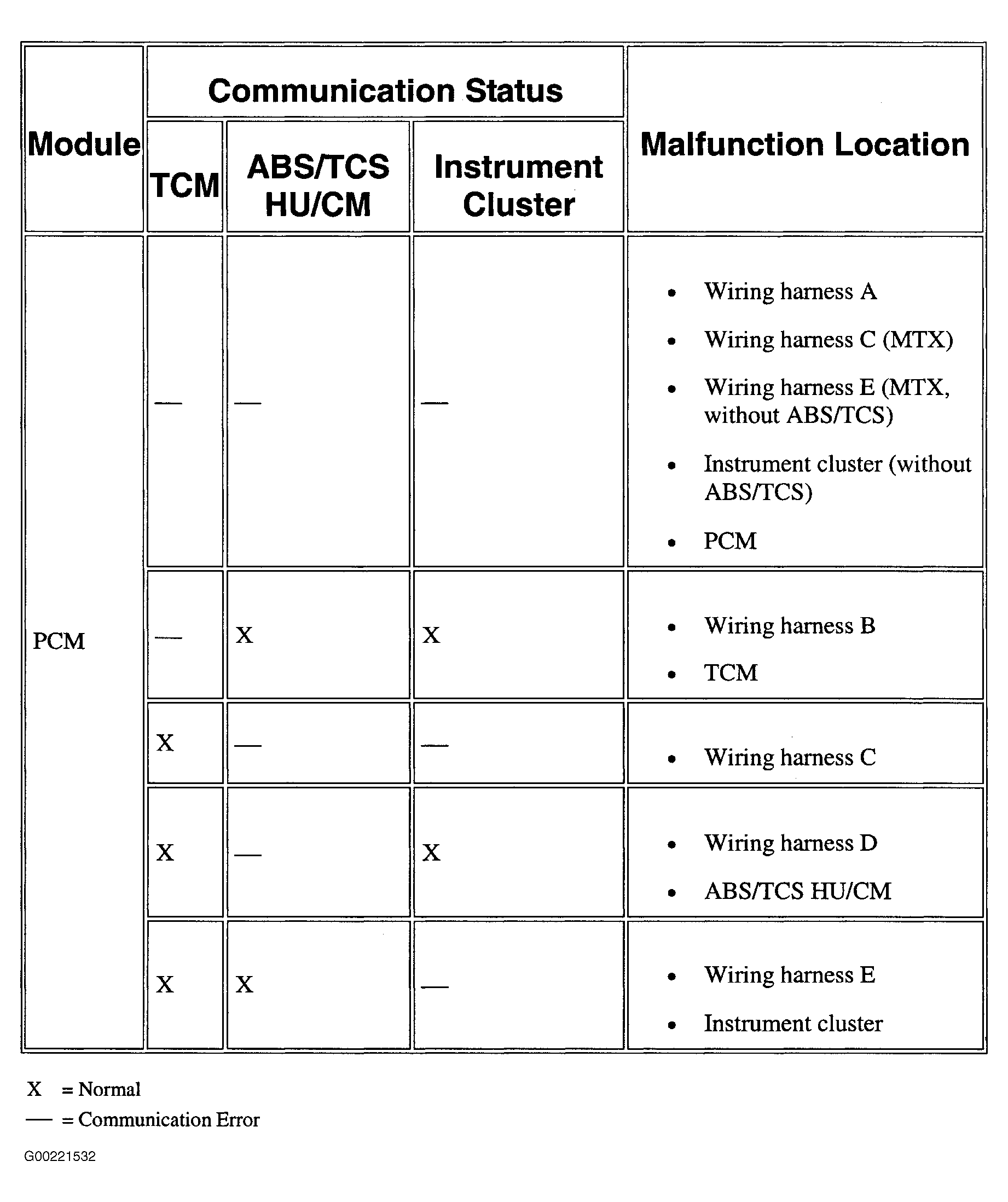

Fig 2: PCM Malfunction Locator Table
G00221532Courtesy of MAZDA MOTORS CORP.
