Camber Adjustment

Loosen the cam nut on the lower arm.
Turn the adjusting cam bolt to provide the correct camber angles as indicated in Fig 1 .

Fig 1: Camber Adjusting Reference Data
Courtesy of MAZDA MOTORS CORP.

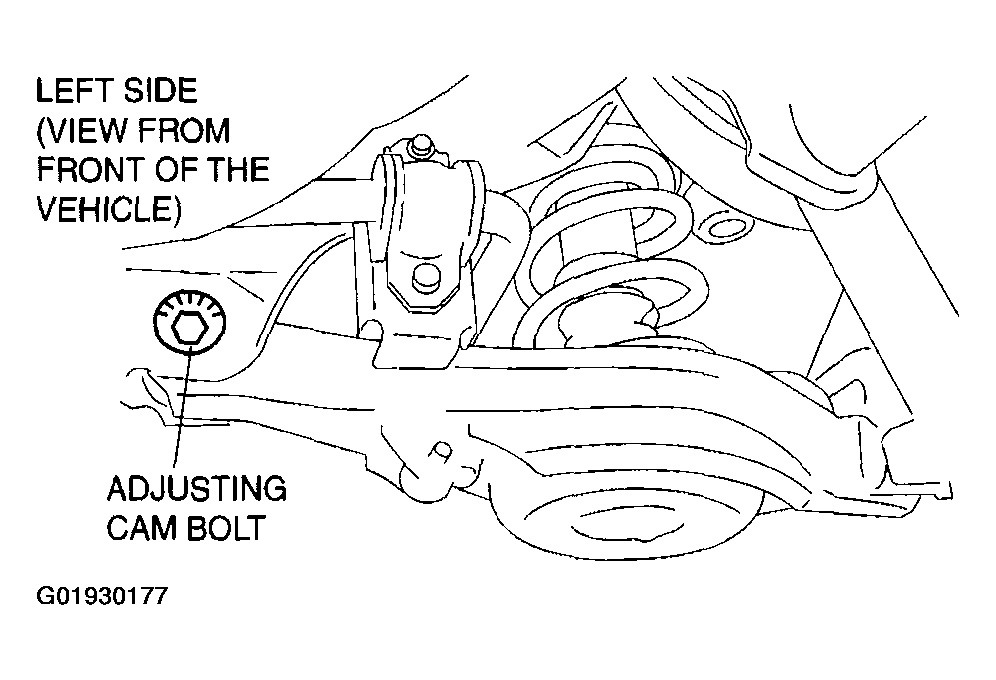

Fig 2: Locating Adjusting CAM Bolt
Courtesy of MAZDA MOTORS CORP.
Tighten the cam nut.
Tightening torque
1. 86.2-116.6 N.m {8.79-11.88 kgf.m, 63.58-85.99 ft.lbf}
