Total Toe-in Adjustment

Loosen the locknut of the lateral link.

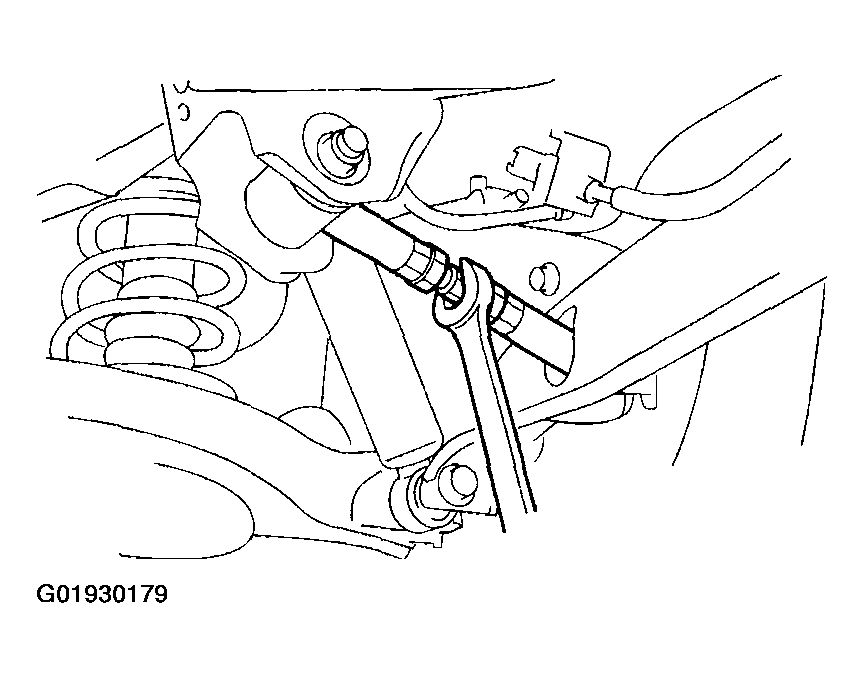

Fig 1: Loosening Lateral Link Locknut
Courtesy of MAZDA MOTORS CORP.
Adjust the toe-in turning the adjusting link.
Specification
1. Total Toe-in: 2+/-4 mm {0.08+/-0.16 in}
NOTE:
- Toe change amount: 0°43' / one rotation

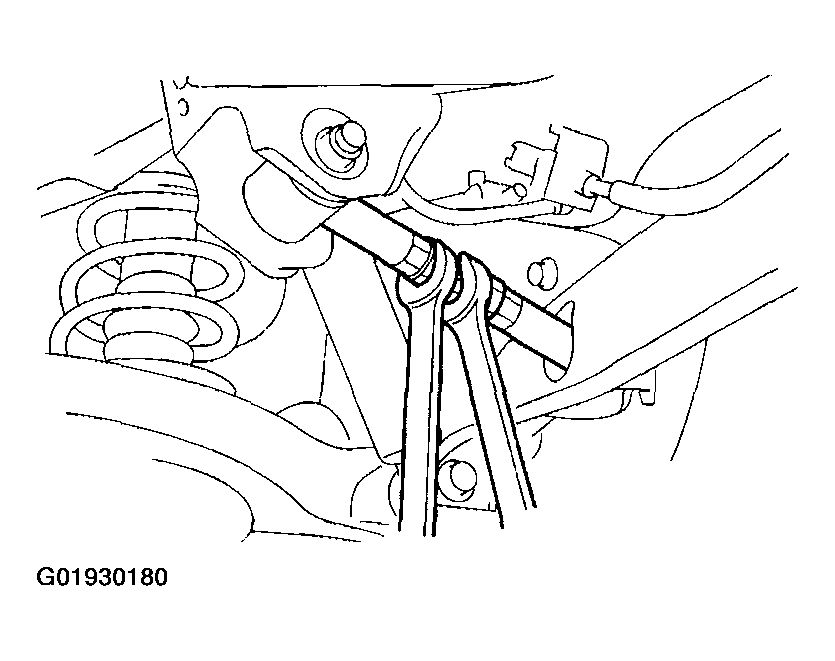

Fig 2: Adjusting Toe-In
Courtesy of MAZDA MOTORS CORP.
Tighten the locknut.
Tightening torque
1. 68.6-98.1 N.m {7.0-10.0 kgf.m, 50.6-72.3 ft.lbf}

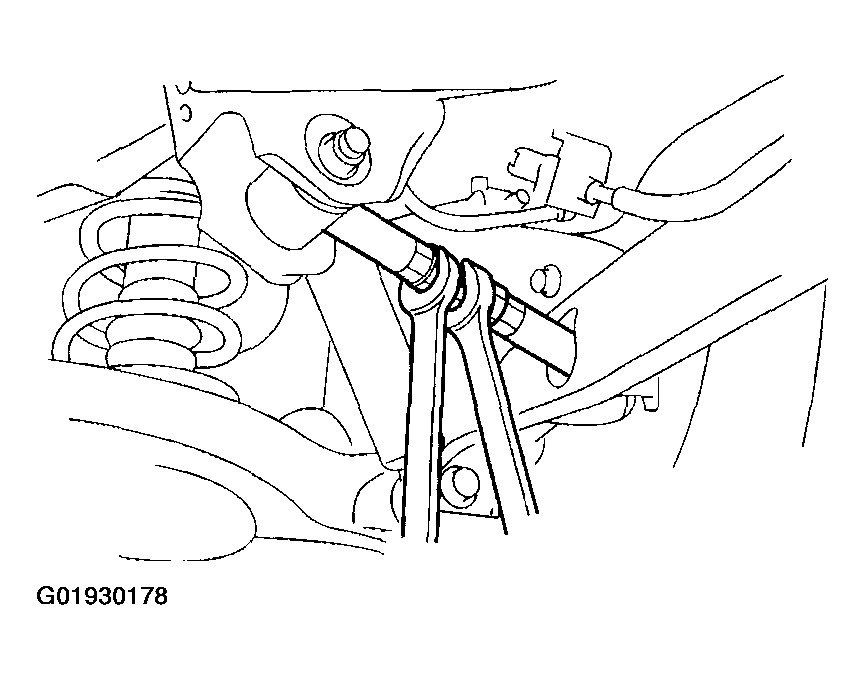

Fig 3: Tightening Tie Rod Locknut
Courtesy of MAZDA MOTORS CORP.
