Front Door Glass Removal/Installation

Operate the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is 210 mm {8.3 in}.
Disconnect the negative battery cable.
Remove the front door trim.
Remove the hole cover.

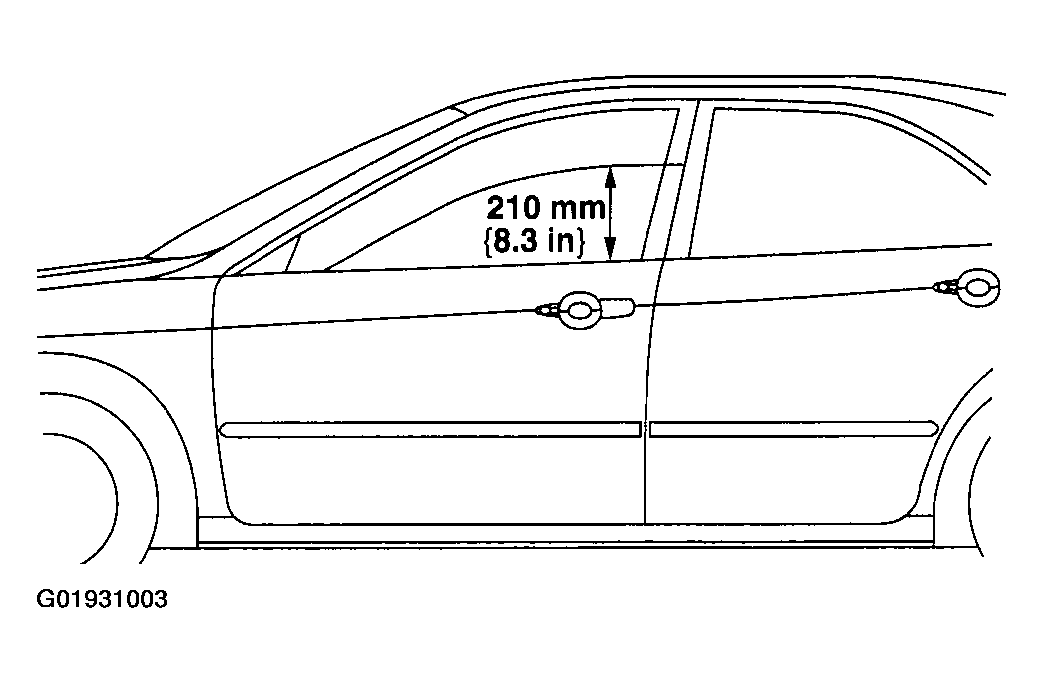

Fig 1: Identifying Distance Between Top Of Front Door Glass And Upper Part Of Front Beltline Molding
Courtesy of MAZDA MOTORS CORP.
Remove the screws.
Lift out the front door glass.
Install in the reverse order of removal.

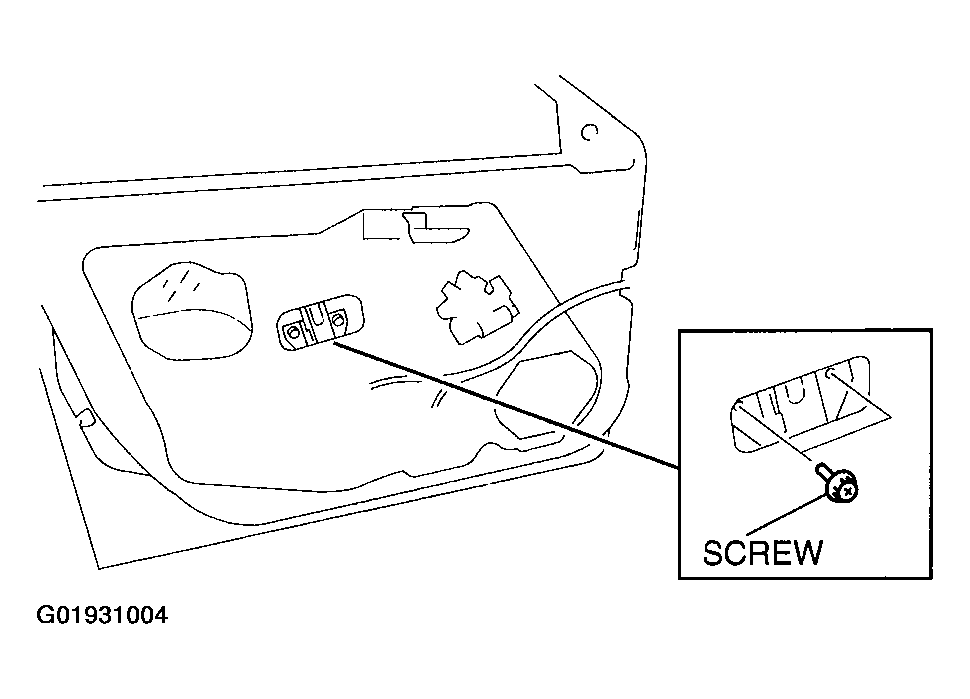

Fig 2: Removing Front Door Glass Screw
Courtesy of MAZDA MOTORS CORP.
