Power Window Regulator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front door glass or rear door glass.
  3. Remove the front door speaker or rear door speaker.
  4. Remove the power window motor.
  5. Remove the nuts.

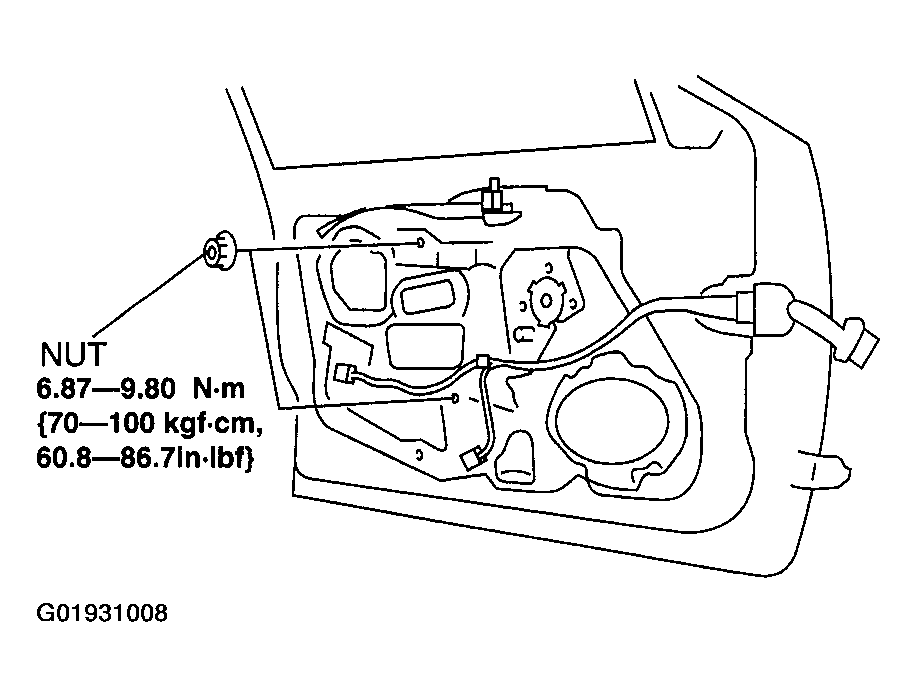

    Fig 1: Removing Power Window Regulator Nut
    G01931008Courtesy of MAZDA MOTORS CORP.
  6. Insert hand through the speaker installation hole, rotate the regulator drum housing in the direction shown in the figure, and disengage the regulator drum housing from the door unit connection tabs.

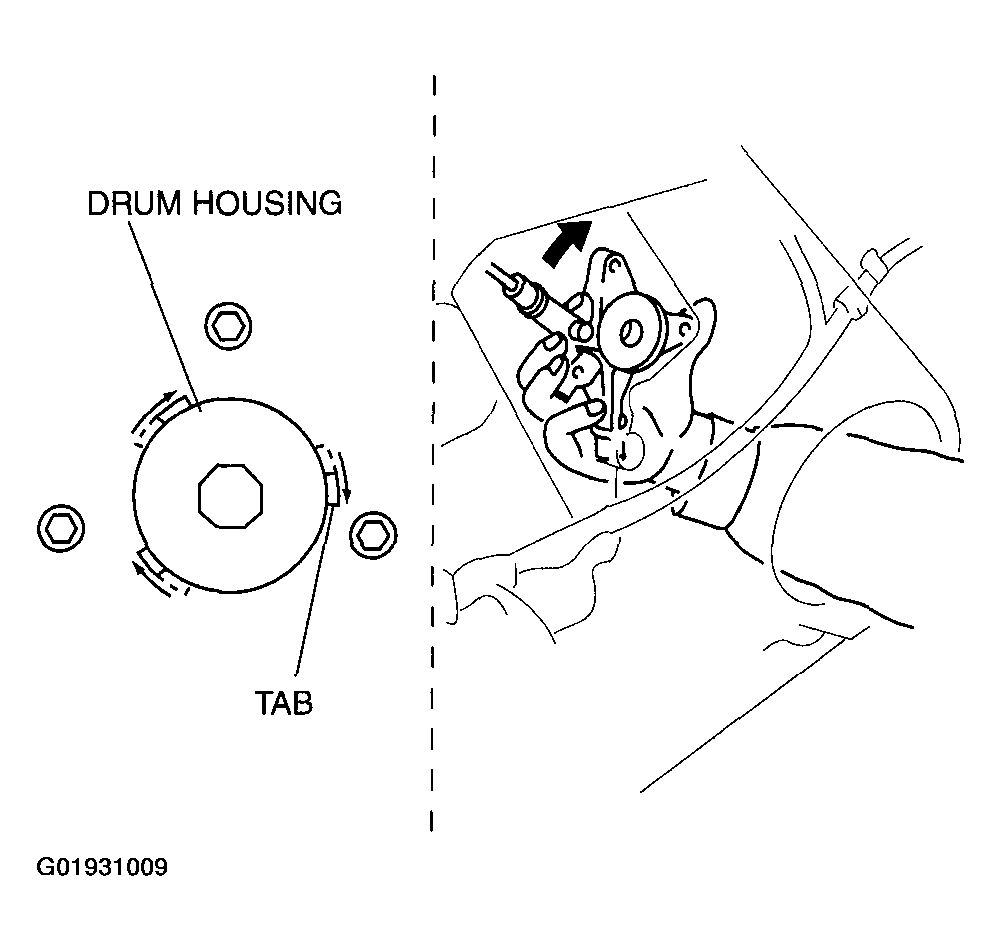

    Fig 2: Inserting Hand Through Speaker Installation Hole To Disengage Regulator Drum Housing From Door Unit Connection Tabs
    G01931009Courtesy of MAZDA MOTORS CORP.
  7. Remove the power window regulator from the speaker installation hole.
  8. Install in the reverse order of removal.

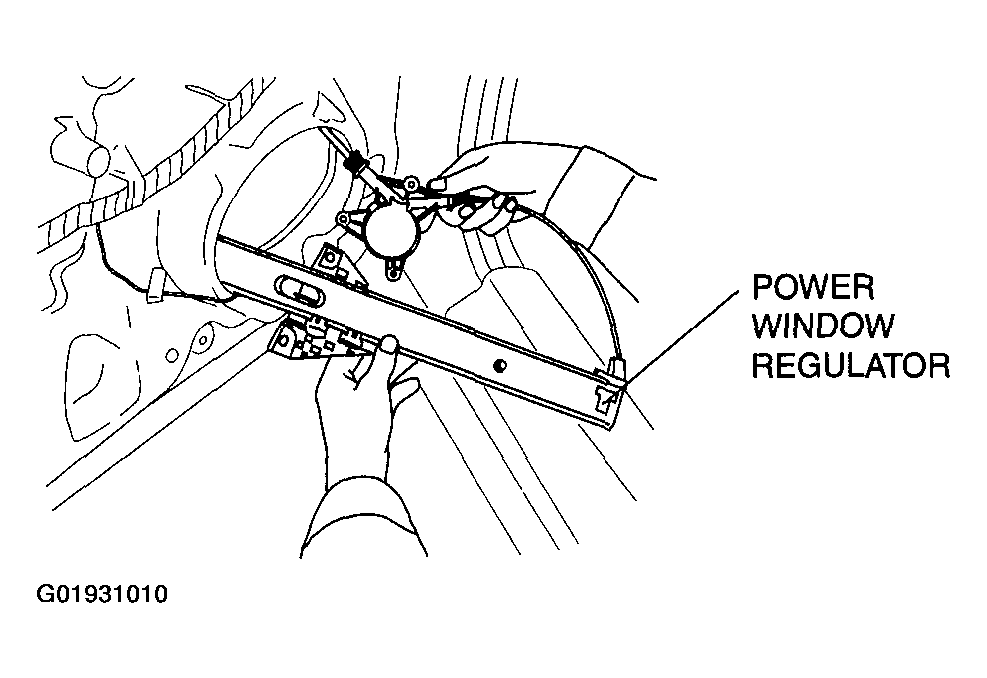

    Fig 3: Removing Power Window Regulator From Speaker Installation Hole
    G01931010Courtesy of MAZDA MOTORS CORP.
