Rear Buckle Removal/Installation

  1. Remove the rear seat cushion.
  2. Remove the bolts.
  3. Remove the rear buckles.

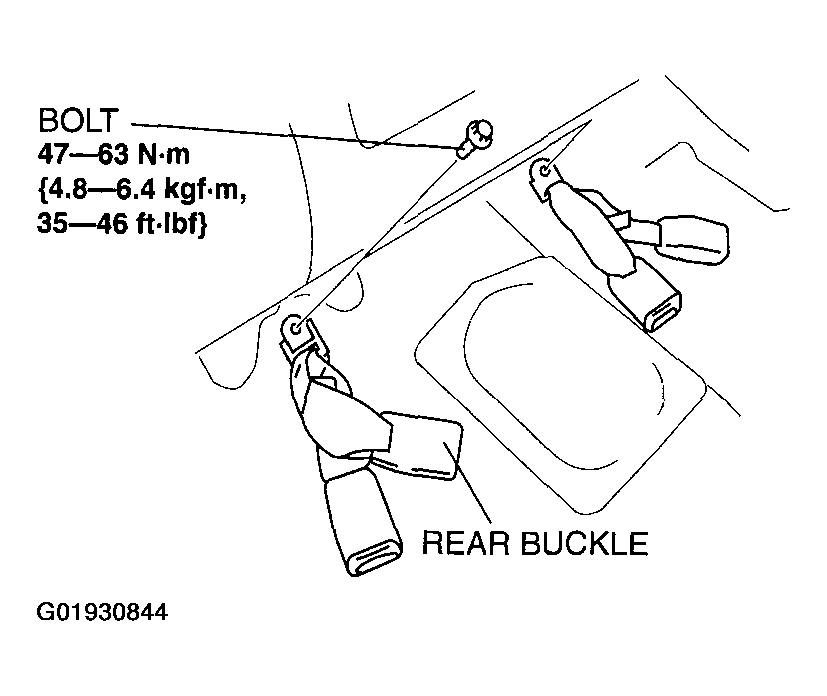

    Fig 1: Removing Rear Buckles
    G01930844Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
