Specification (Unloaded)

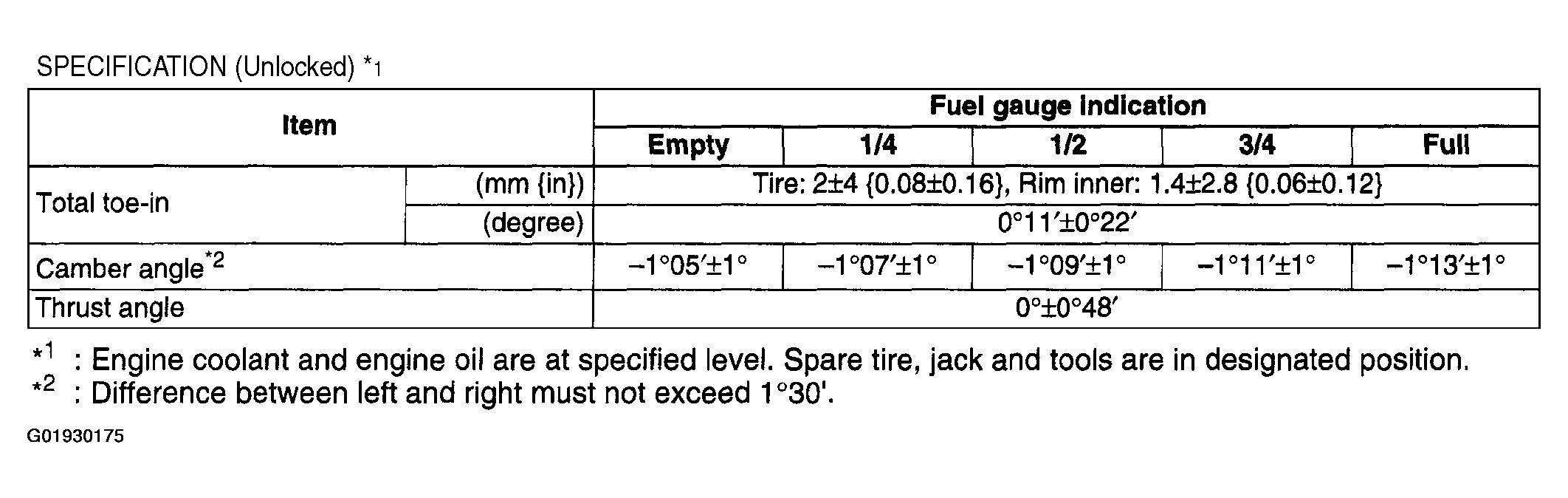

Fig 1: Rear Wheel Alignment Specification (Unloaded)
G01930175Courtesy of MAZDA MOTORS CORP.
NOTE:
  • Adjust the toe-in after adjusting the camber.
