Right Mirror

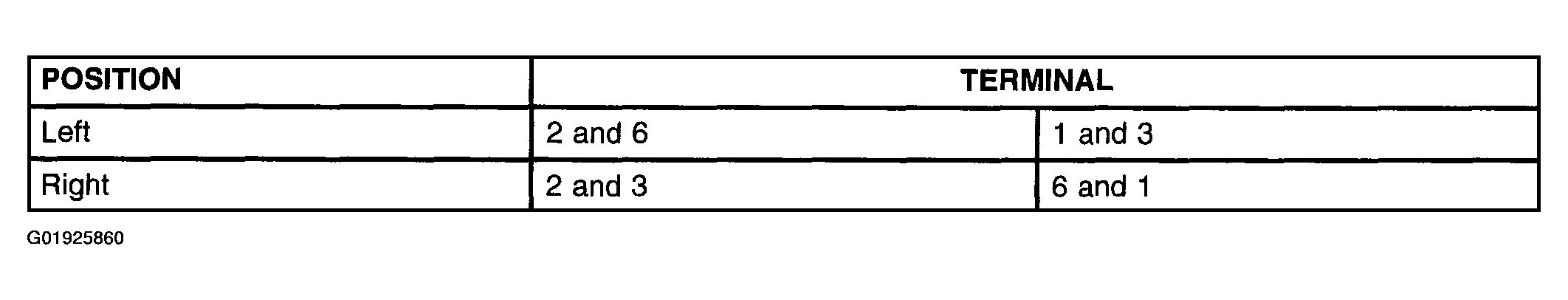

Fig 1: Power Outside Mirror Switch Specifications (Right Mirror) (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

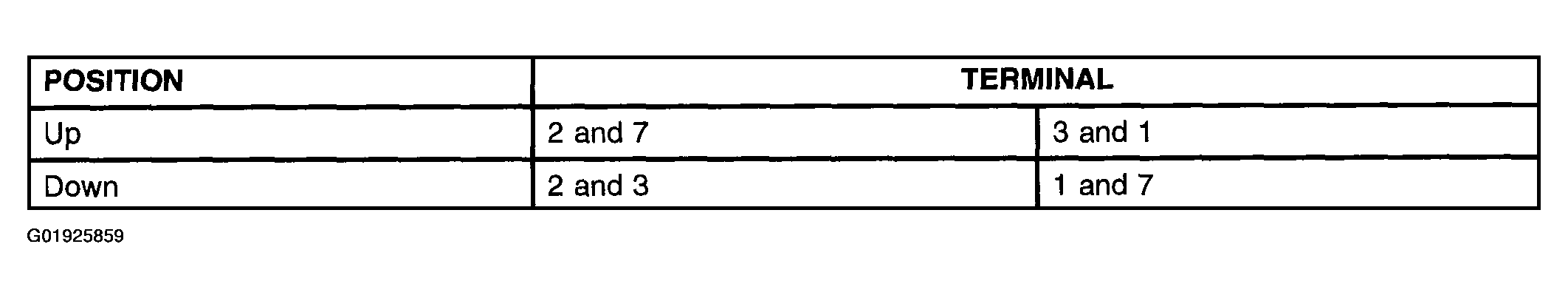

Fig 2: Power Outside Mirror Switch Specifications (Right Mirror) (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

If the resistances are less than 5 ohms, return to the appropriate diagnostic pinpoint test. Otherwise, replace the power outside mirror switch; see POWER OUTSIDE MIRROR SWITCH REMOVAL/INSTALLATION  .
