Windshield Removal/Installation: Notes

Remove the windshield wiper pivot arms. See PIVOT ARM REMOVAL/INSTALLATION .
Remove both A-pillar trim assist handles, if equipped.

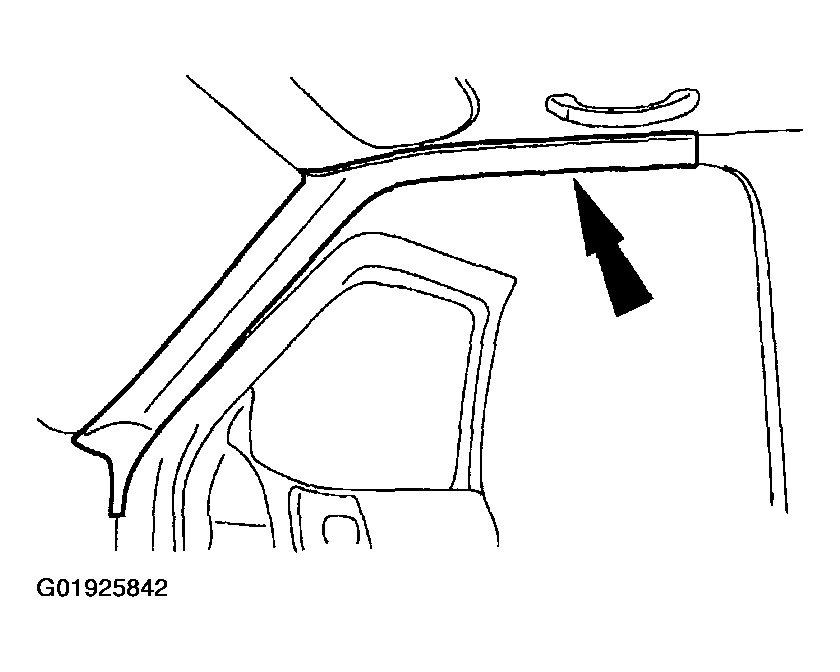

Remove both A-pillar trim panels

Fig 1: Removing A-Pillar Trim Panel
Courtesy of MAZDA MOTORS CORP.

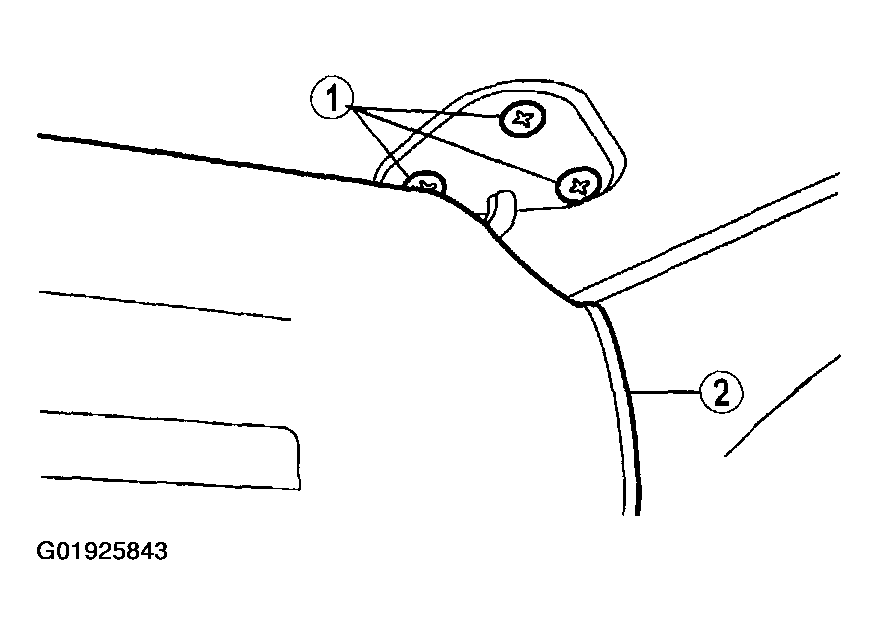

Remove the screws (1), sun visors (2) and disconnect connectors, if necessary.

Fig 2: Removing Screws and Sun Visors
Courtesy of MAZDA MOTORS CORP.
Remove the inside rear view mirror.

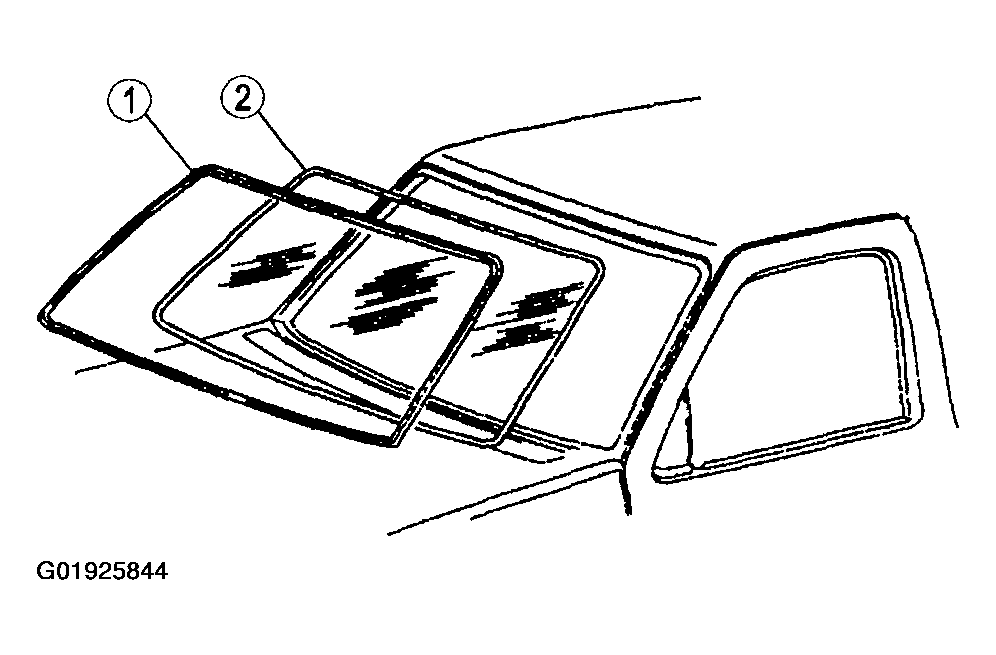

Remove molding (1) and windshield (2). Refer to WINDSHIELD REMOVAL NOTE .

Fig 3: Removing Molding And Windshield
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal. Refer to WINDSHIELD INSTALLATION NOTE .
