Windshield Removal Note

Use knife to cut the urethane from the windshield.

1. Insert the knife blade into the urethane at the middle of the top of the windshield and work to the bottom corners.
2. Trim the excess urethane from the outside edge of the windshield.
   NOTE:

   • Removing the windshield requires more than one technician.
3. Carefully remove the windshield.
4. Trim the remaining urethane on the pinch weld. The existing urethane surface should be smooth and free from cuts and contamination.

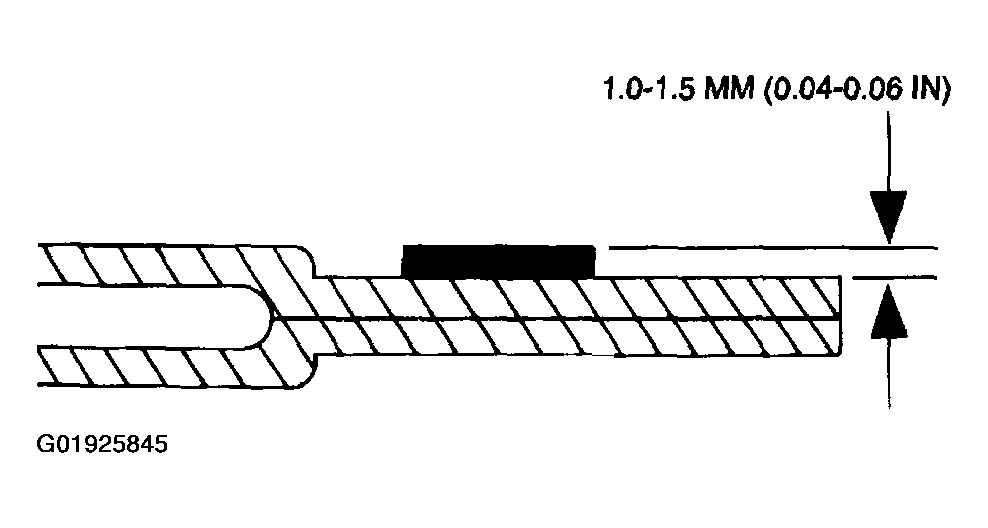

   Fig 1: Trimming Remaining Urethane On Pinch Weld

   Courtesy of MAZDA MOTORS CORP.
