Generators & Regulators: Adjustments

NOTE: Drive belt tension is regulated by automatic tensioner. Use illustration for proper routing. See Fig 1 , Fig 2 or Fig 3 . Generator and voltage regulator are not adjustable.

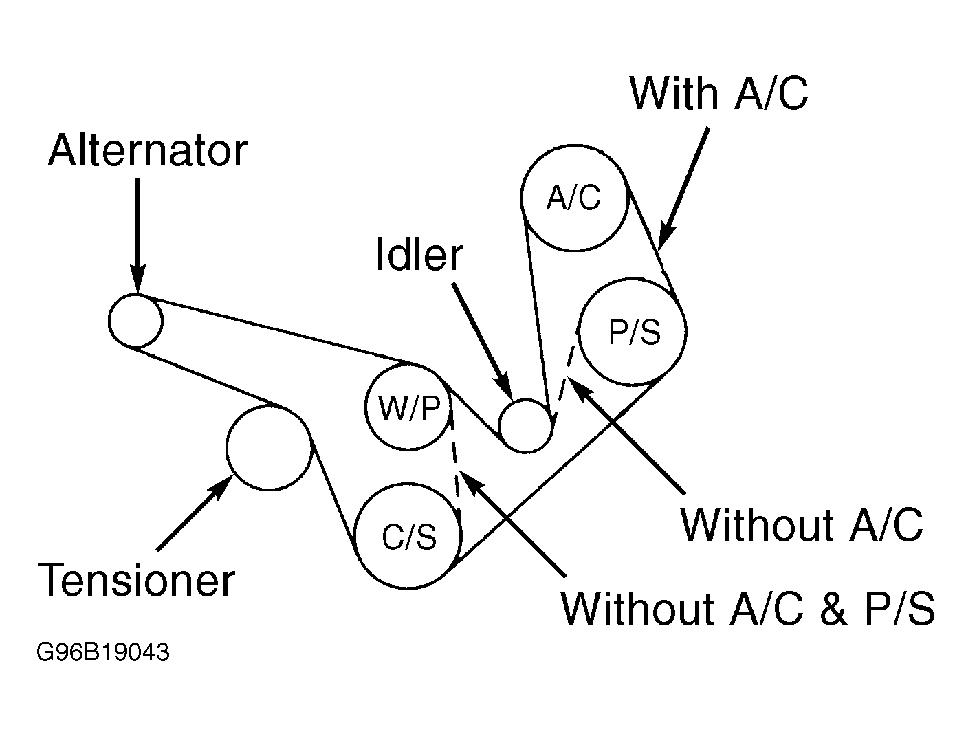

Fig 1: Belt Routing (B2300)

Courtesy of FORD MOTOR CO.

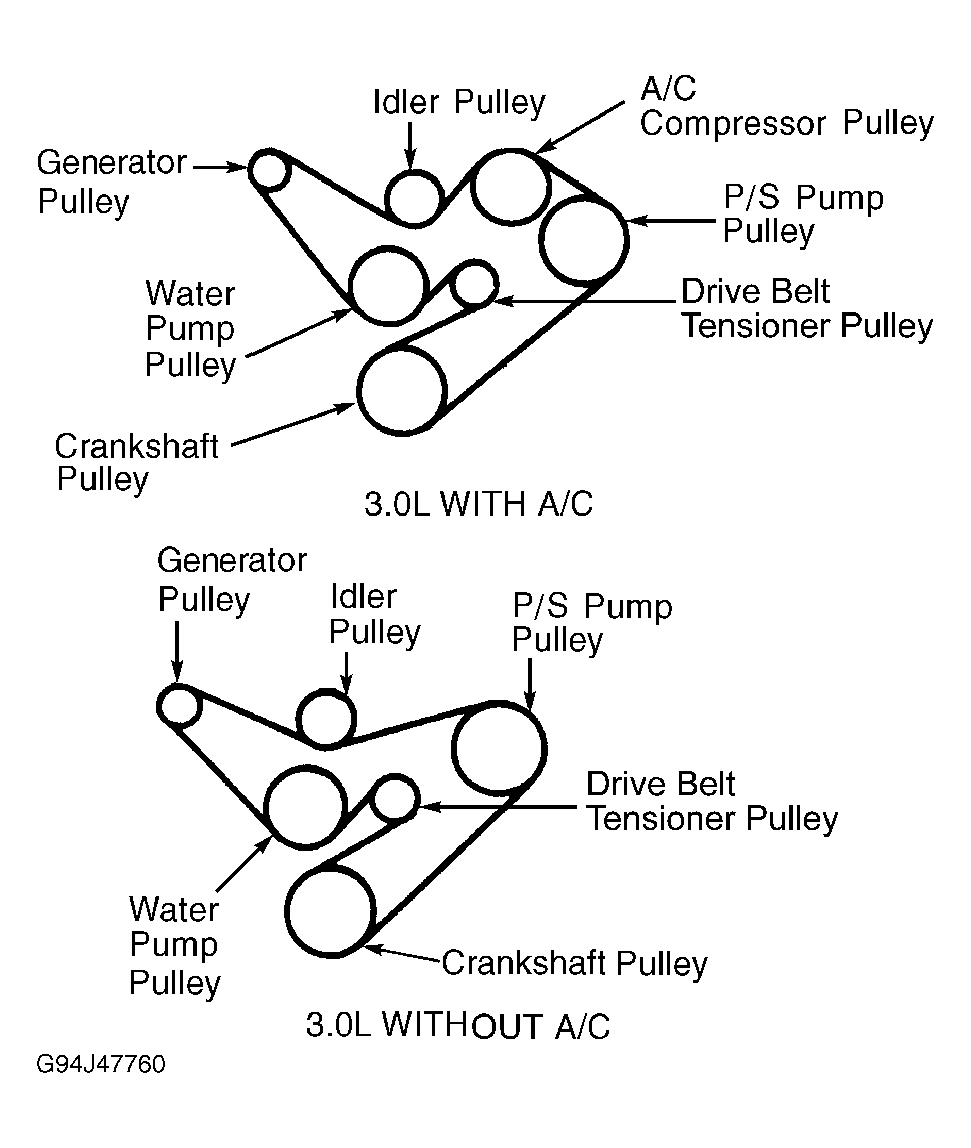

Fig 2: Belt Routing (B3000)

Courtesy of FORD MOTOR CO.

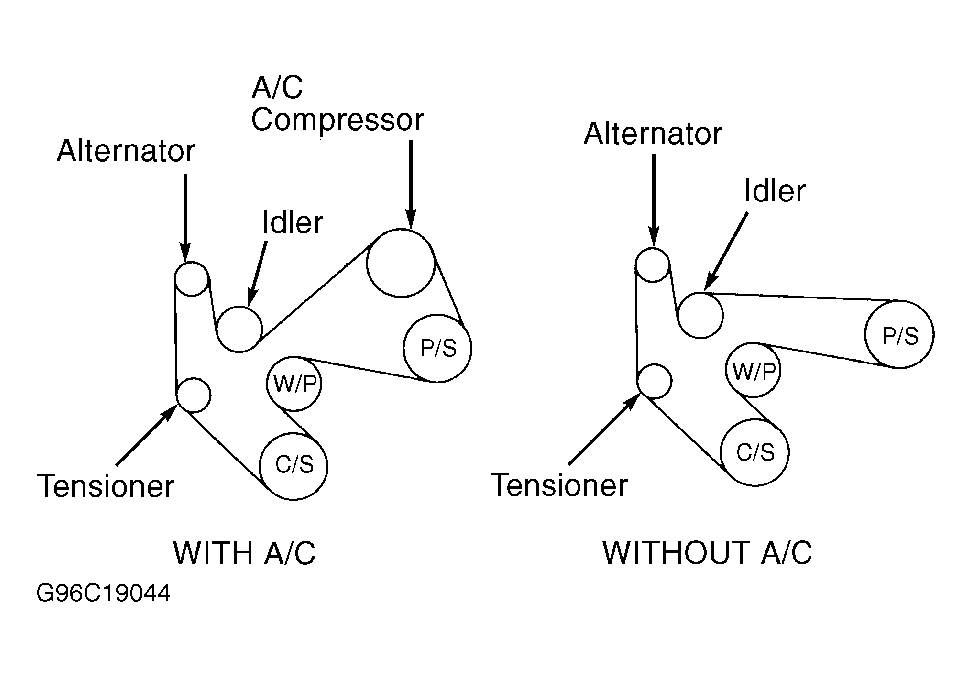

Fig 3: Belt Routing (B4000)

Courtesy of FORD MOTOR CO.
