Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module (4.0L) | On left front inner fender panel. |
| Central Security Module | Behind right kick panel. |

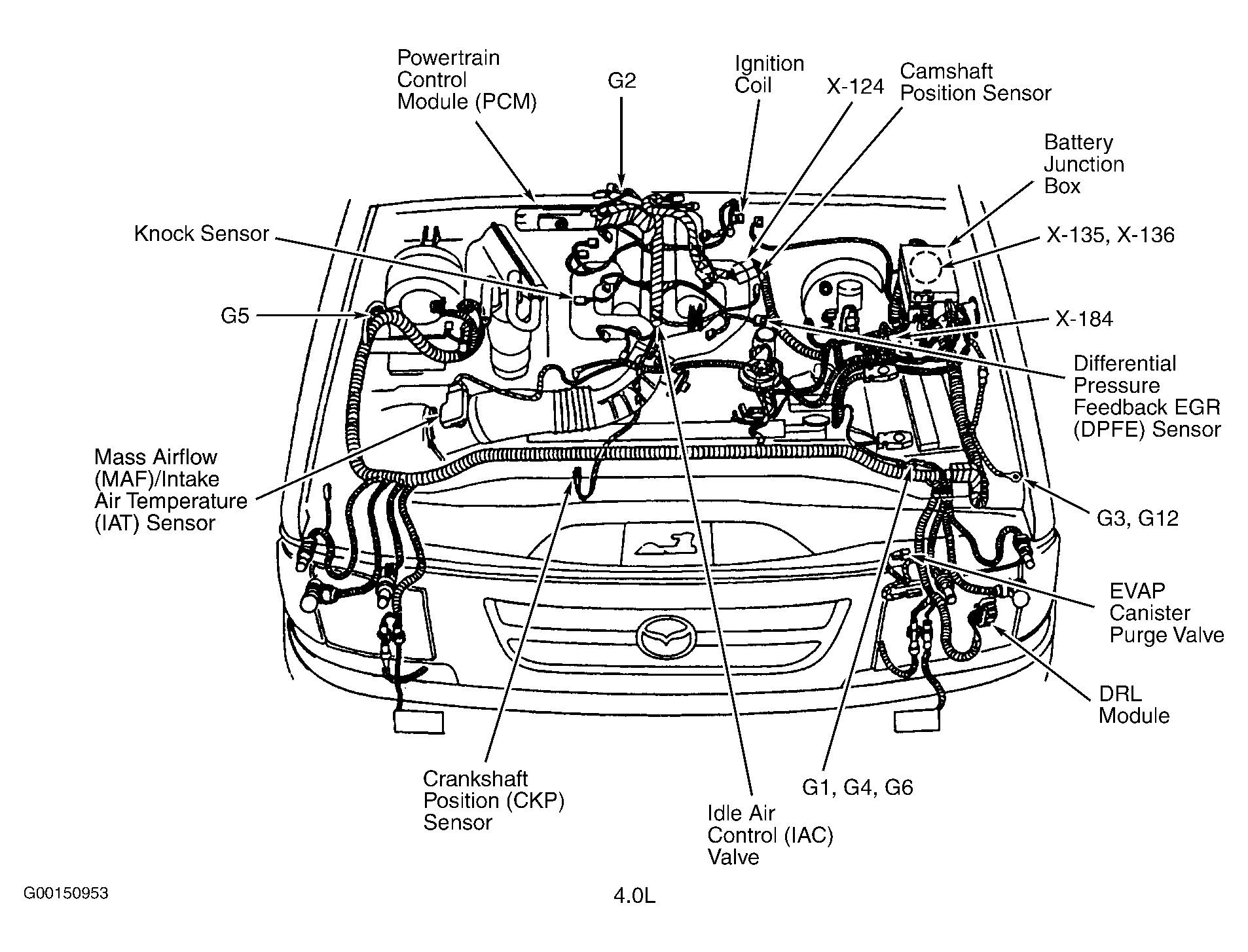

| DRL Module (4.0L) | Left side of lower radiator support. See Figure . |
| Four Wheel Drive Control Module | Behind right kick panel. |
| Generic Electronic Module | Behind center of dash. |
| Instrument Panel Dimming Module | Behind left side of dash. |
| Passive Anti-Theft Transceiver | Behind center of dash. |
| Powertrain Control Module (PCM) (2.3L) | Right rear of engine compartment, through firewall. See Figure . |
| Powertrain Control Module (PCM) (3.0L) | Right rear of engine compartment, through firewall. See Figure . |
| Powertrain Control Module (PCM) (4.0L) | Right rear of engine compartment, through firewall. See Figure . |
| Restraint Control Module | Behind center of dash. |
| Swirl Control Monitor (2.3L) | In rear of engine compartment. See Figure . |
