Engine Ignition Specifications - 2.3L

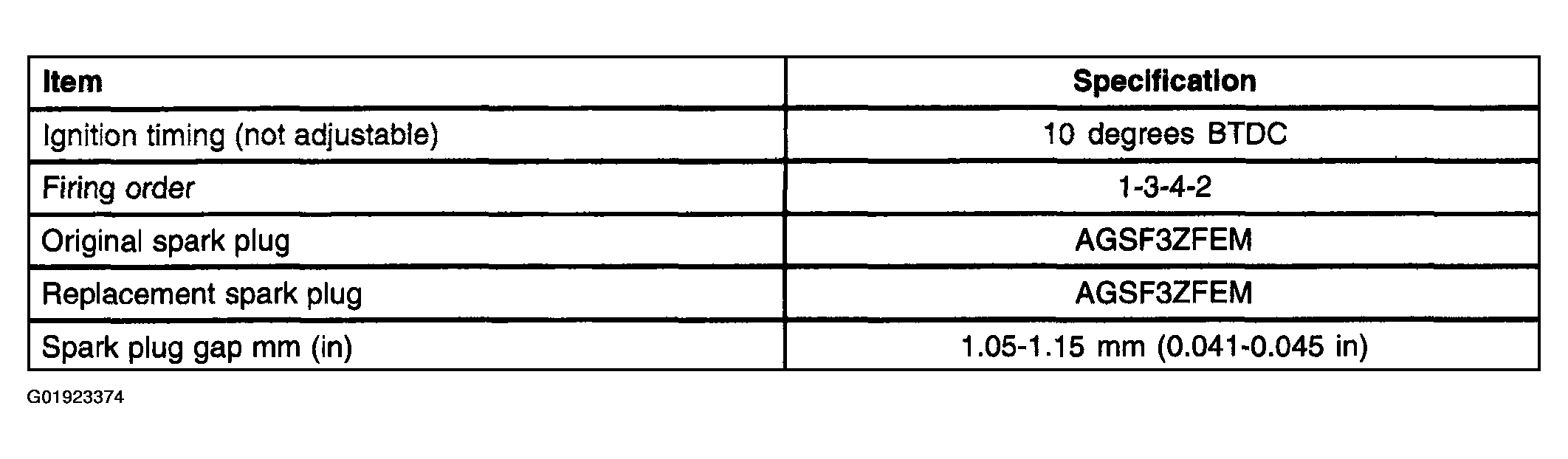

Fig 1: Identifying Engine Ignition Specifications - 2.3L
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
