Fuel System Specifications

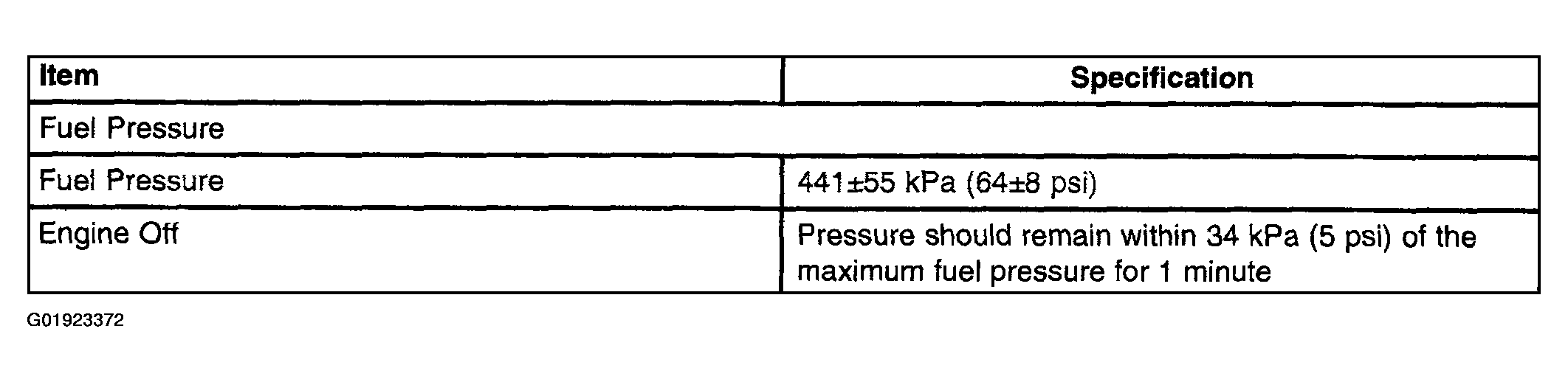

Fig 1: Identifying Fuel System Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
