Child Safety Seat Tether Anchor

Deactivate the supplemental restraint system (SRS); see DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove the affected seat.
On vehicles equipped with a bucket seat or 40 percent bench, remove the bolts and the child safety seat tether anchor.

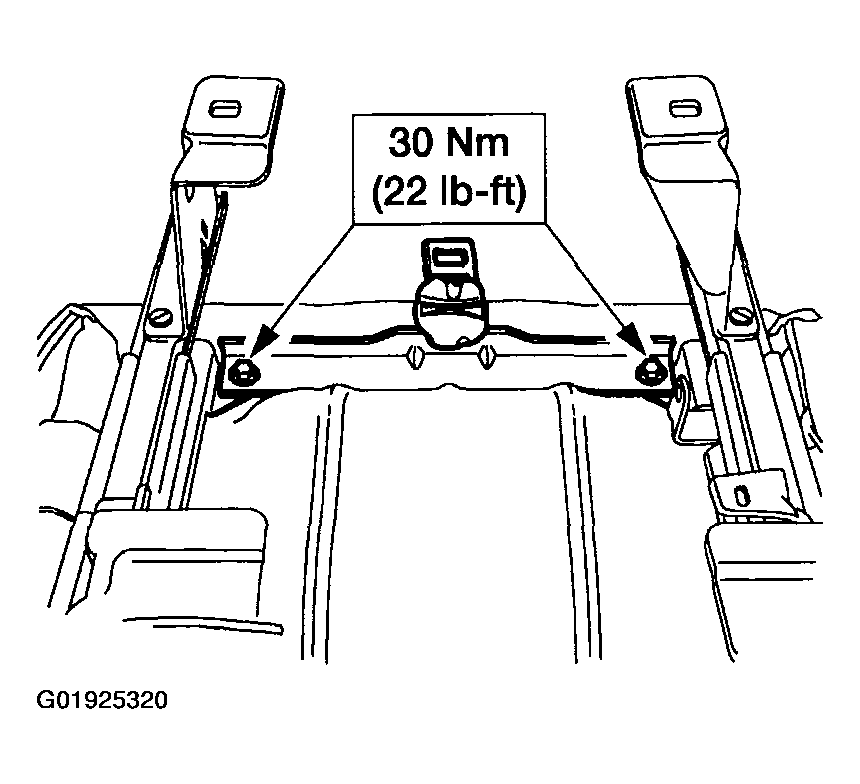

Fig 1: Removing Child Safety Seat Tether Anchor (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
On vehicles equipped with a 60 percent bench, remove the 60 percent bench seat; see SEAT BACKREST FRONT -- 60 PERCENT BENCH REMOVAL TEST .
Remove the bolts and the child safety seat tether anchor.

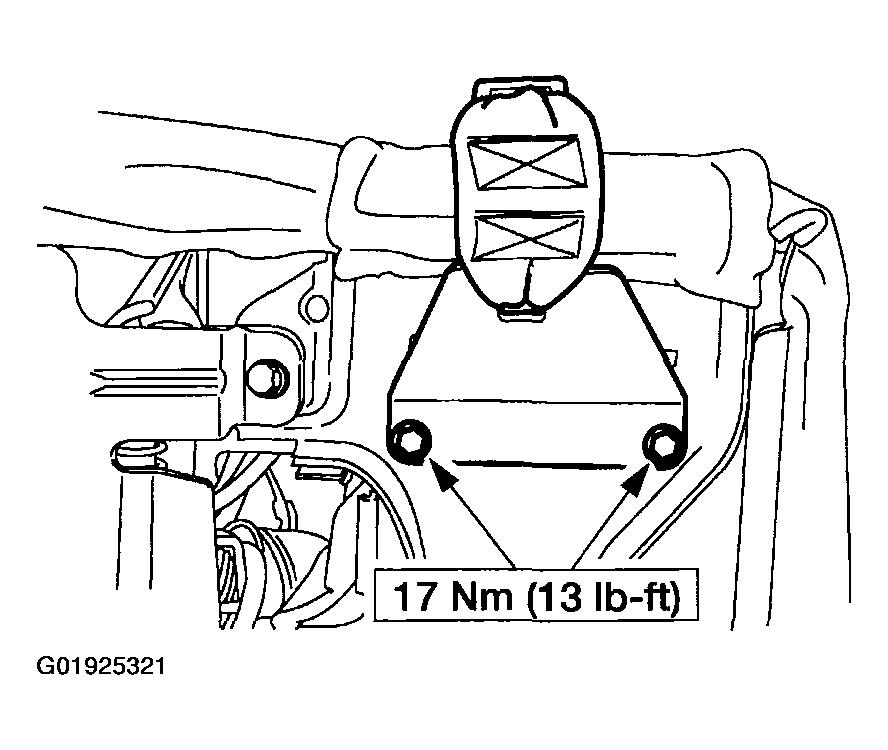

Fig 2: Removing Child Safety Seat Tether Anchor (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
