Power Circuits

Turn ignition off. Disconnect PCM 104-pin harness connector. Connect 104-Pin Breakout Box (49-UN01-130) to PCM and PCM harness connector. See Fig 1 . Using a DVOM, check for battery voltage between ground and breakout box terminal No. 55 (KAPWR). Turn ignition to START or RUN position. Check for battery voltage between ground and breakout box terminal No. 71 (VPWR). See Fig 2 -Fig 6 . If battery voltage is not present, power is not being supplied from PCM power relay. See appropriate wiring diagram under ENGINE PERFORMANCE in WIRING DIAGRAMS.

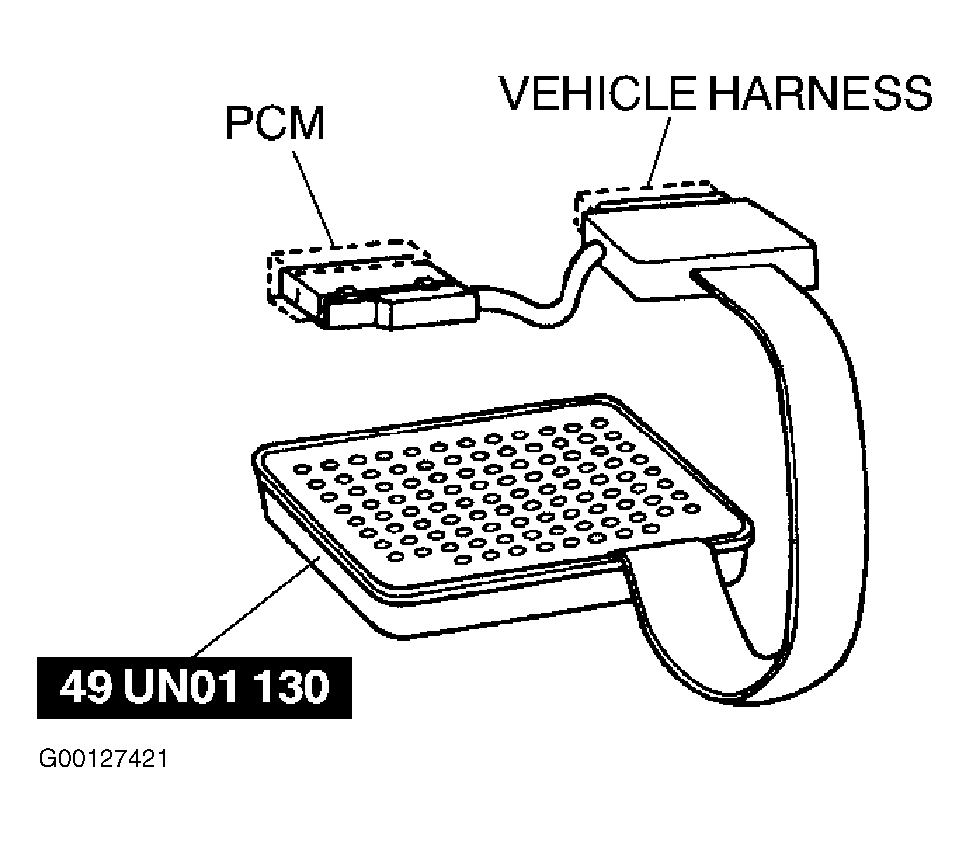

Fig 1: Identifying 104-Pin Break Out Box

Courtesy of MAZDA MOTORS CORP.

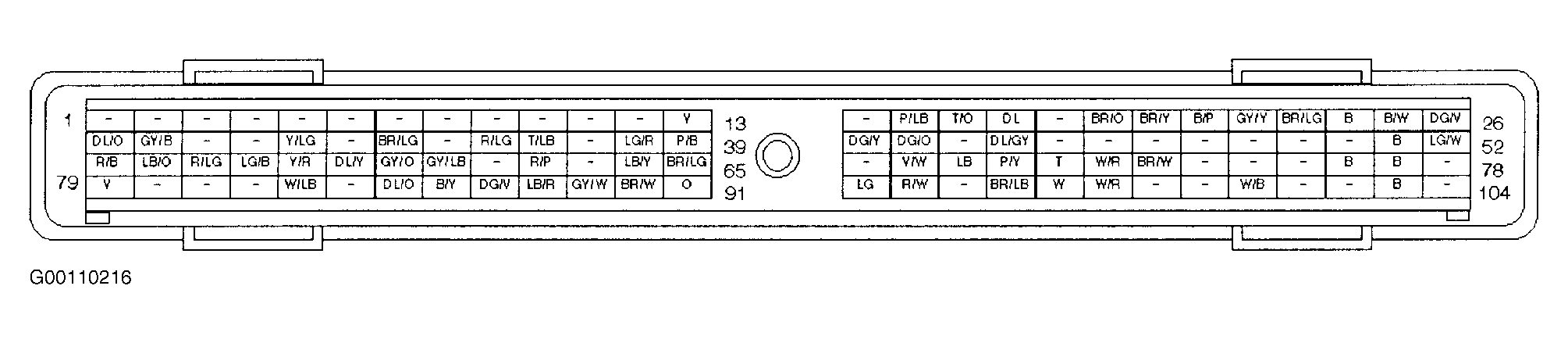

Fig 2: Identifying PCM Connector & Terminals (B2300)

Courtesy of MAZDA MOTORS CORP.

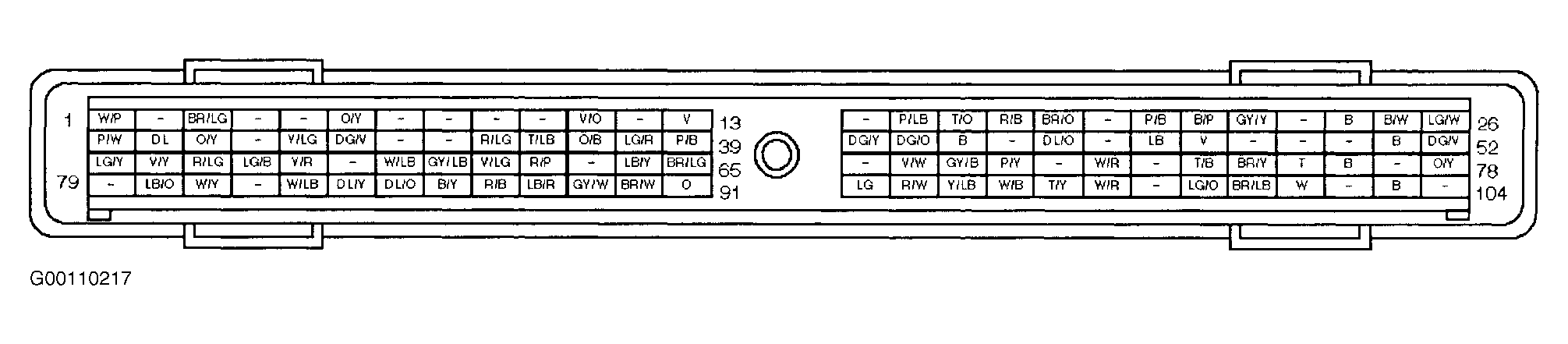

Fig 3: Identifying PCM Connector & Terminals (B3000)

Courtesy of MAZDA MOTORS CORP.

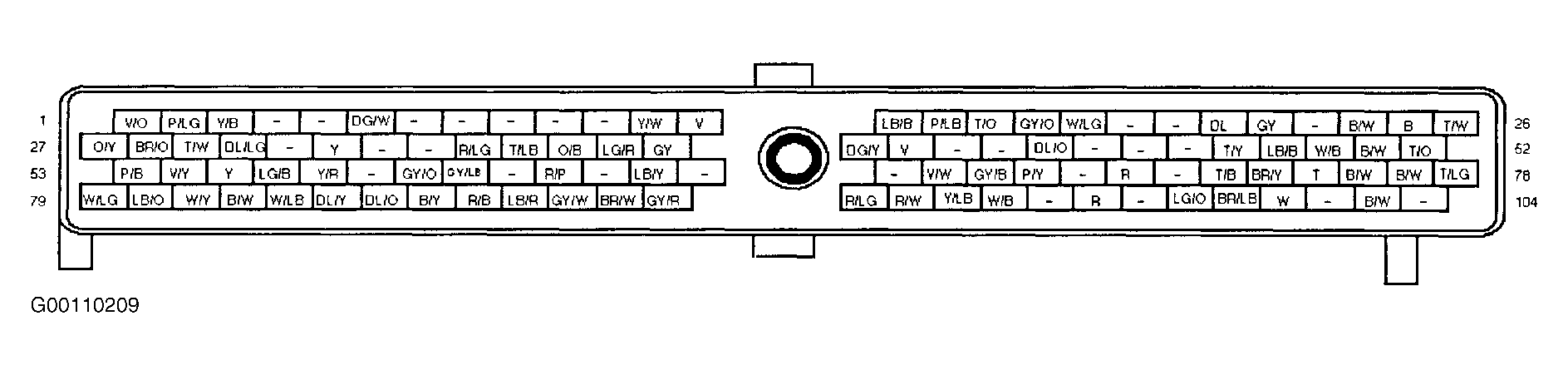

Fig 4: Identifying PCM Connector & Terminals (B4000)

Courtesy of MAZDA MOTORS CORP.

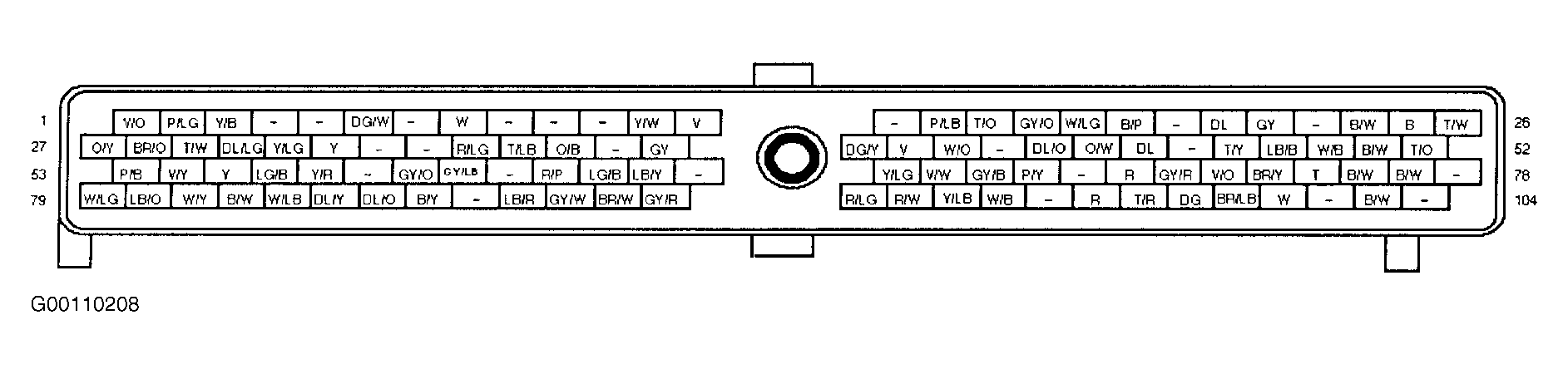

Fig 5: Identifying PCM Connector & Terminals (Tribute 2.0L)

Courtesy of MAZDA MOTORS CORP.

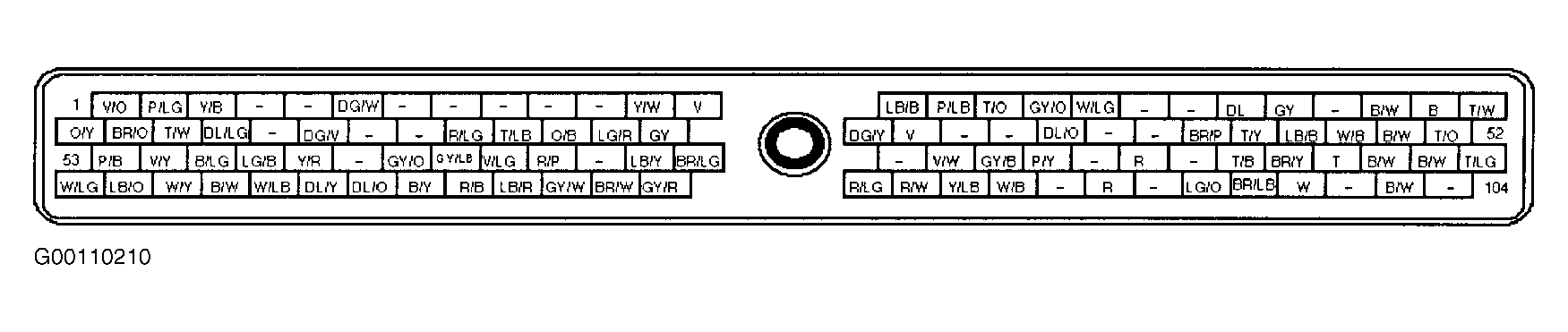

Fig 6: Identifying PCM Connector & Terminals (Tribute 3.0L)

Courtesy of MAZDA MOTORS CORP.
