Rivets Removal Note

Support window glass before removing the rivets.
Use a drift punch to remove the steel centers and a 6.35 mm (1/4 in) diameter drill bit to remove the rivets.

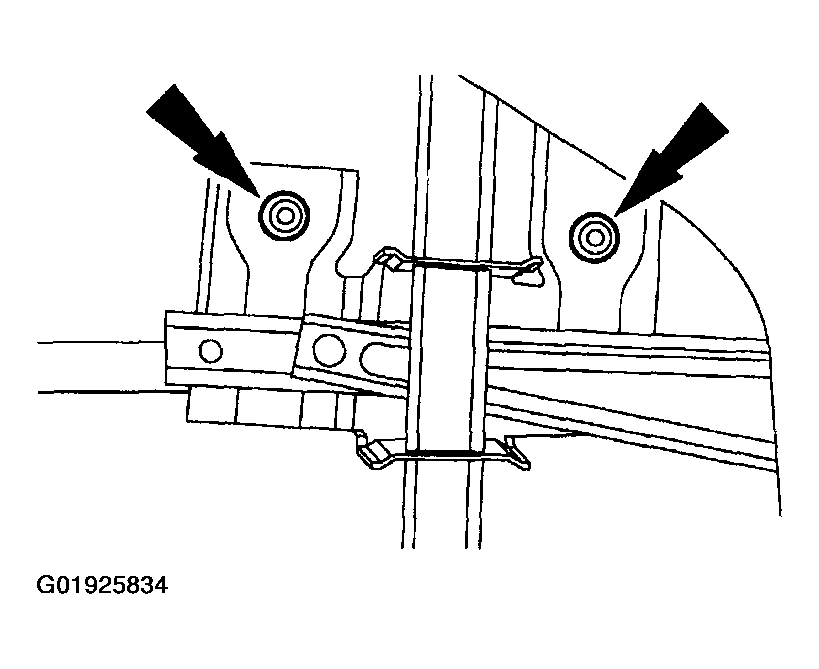

Fig 1: Identifying Rivets
Courtesy of MAZDA MOTORS CORP.
