Window Glass, Rear Removal/Installation

NOTE:

Remove the lower back trim.
Remove the headliner; see HEADLINER REMOVAL/INSTALLATION .
Remove the 12 nuts.
Remove the rear window glass.
Install the rear window glass (1).
Tighten the 12 nuts (2).

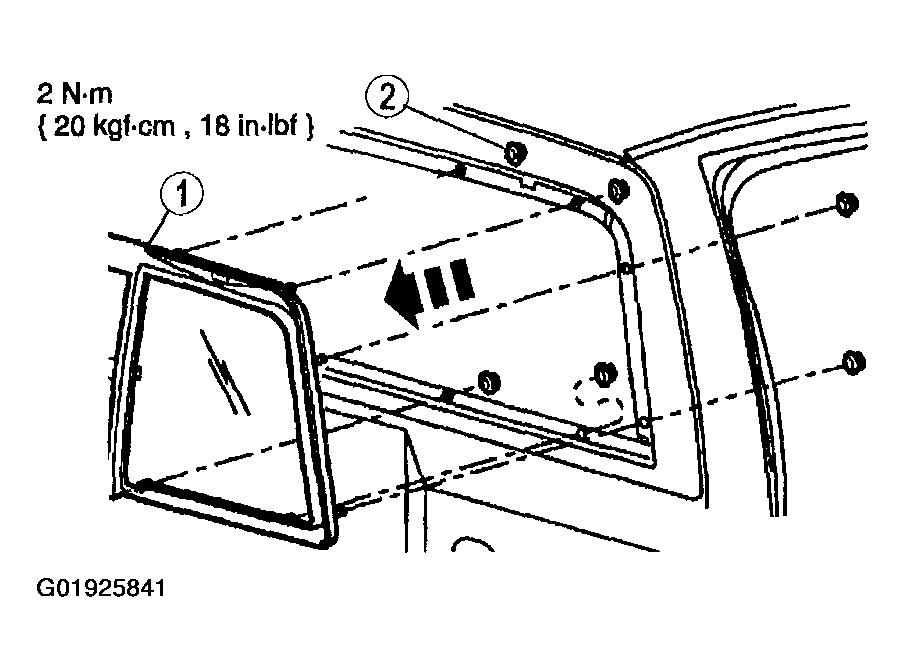

Fig 1: Installing Rear Glass and Nuts
Courtesy of MAZDA MOTORS CORP.
1. Tightening torque
  2 N.m {20 kgf.cm, 18 in.lbf}
Clean the area around the rear window glass.
- Test the rear window glass for water leaks.
Install the headliner; see B-PILLAR TRIM (REGULAR CAB REMOVAL/INSTALLATION .
Install the lower back trim.
