Combined Sensor Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The internal parts of the combined sensor could be damaged if dropped. Be careful not to drop the combined sensor. Replace the combined sensor if it is subjected to an impact. Also, do not use an impact wrench or other similar air tools when removing/installing the sensor.

Remove the rear console.
Remove in the order indicated. See Fig 1.

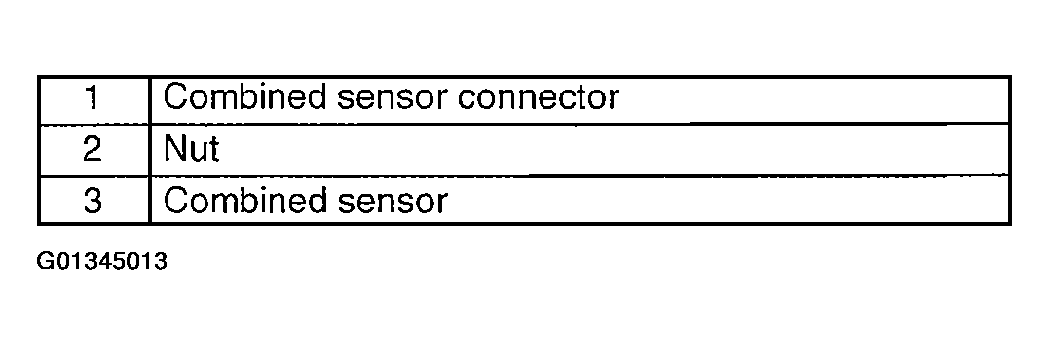

Fig 1: Removing/Installing Sequence Order Of Combined Sensor
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
After installation, perform the combined sensor initialization procedure. (See COMBINED SENSOR INITIALIZATION PROCEDURE .)

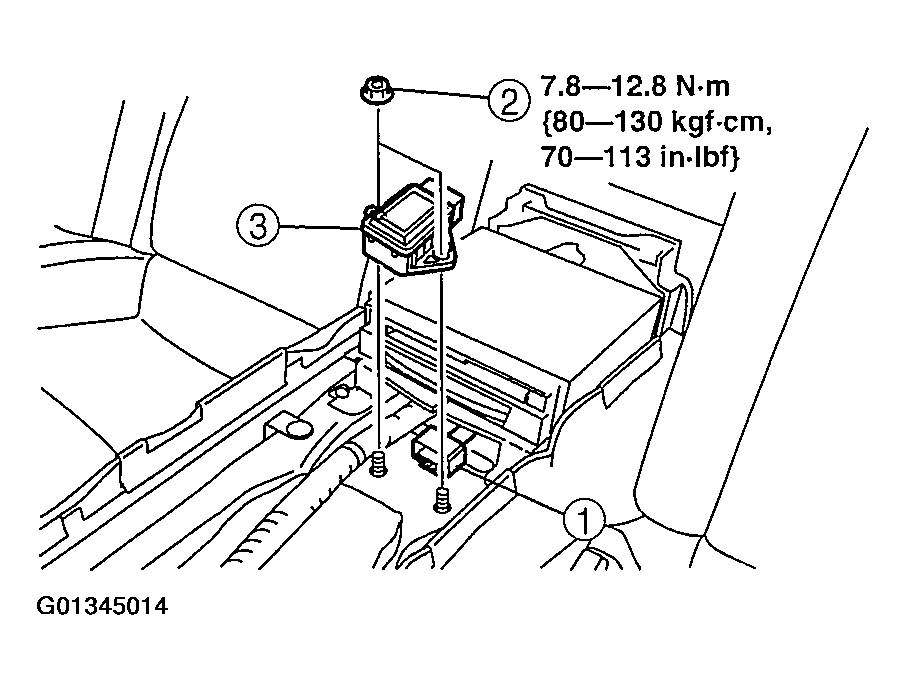

Fig 2: Removing/Installing Combined Sensor
Courtesy of MAZDA MOTORS CORP.
