Standard (Reference Value)

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

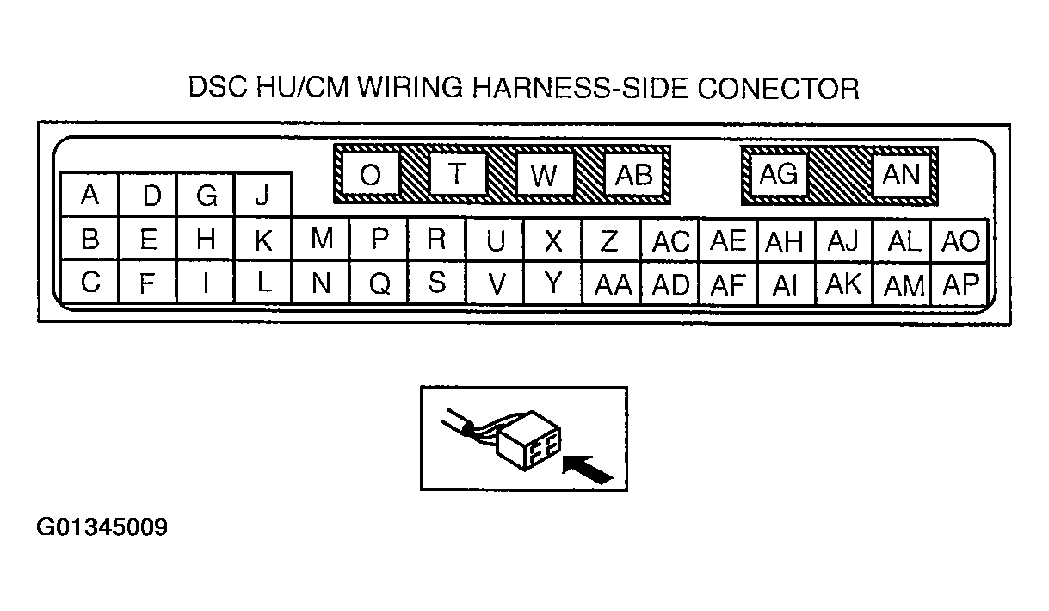

Fig 1: DSC HU/CM Wiring Harness-Side Connector

Courtesy of MAZDA MOTORS CORP.

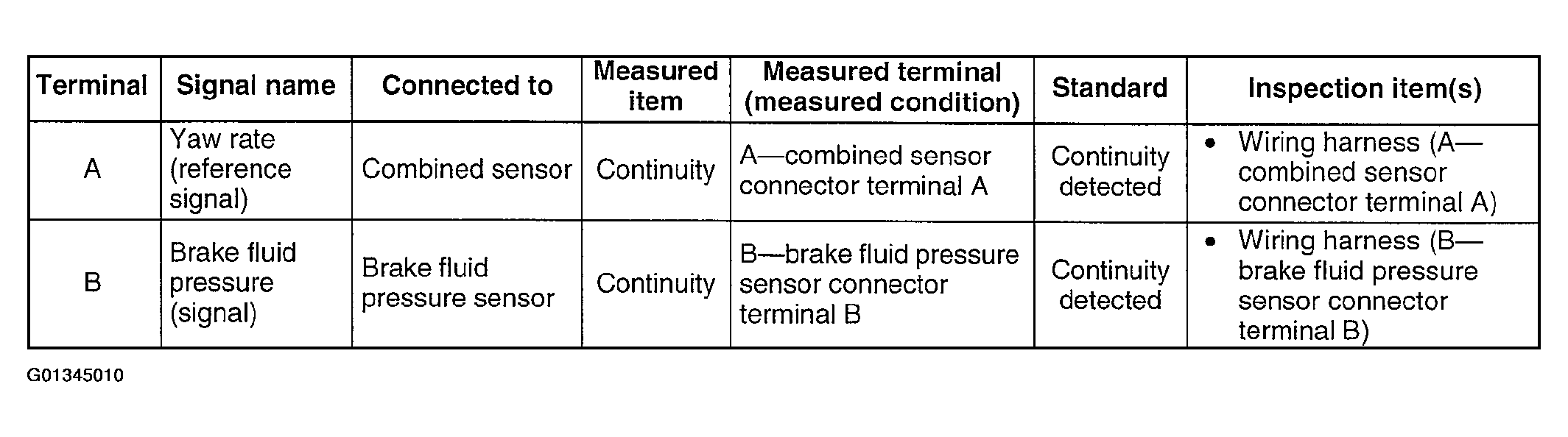

Fig 2: Standard (Reference Value) - (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

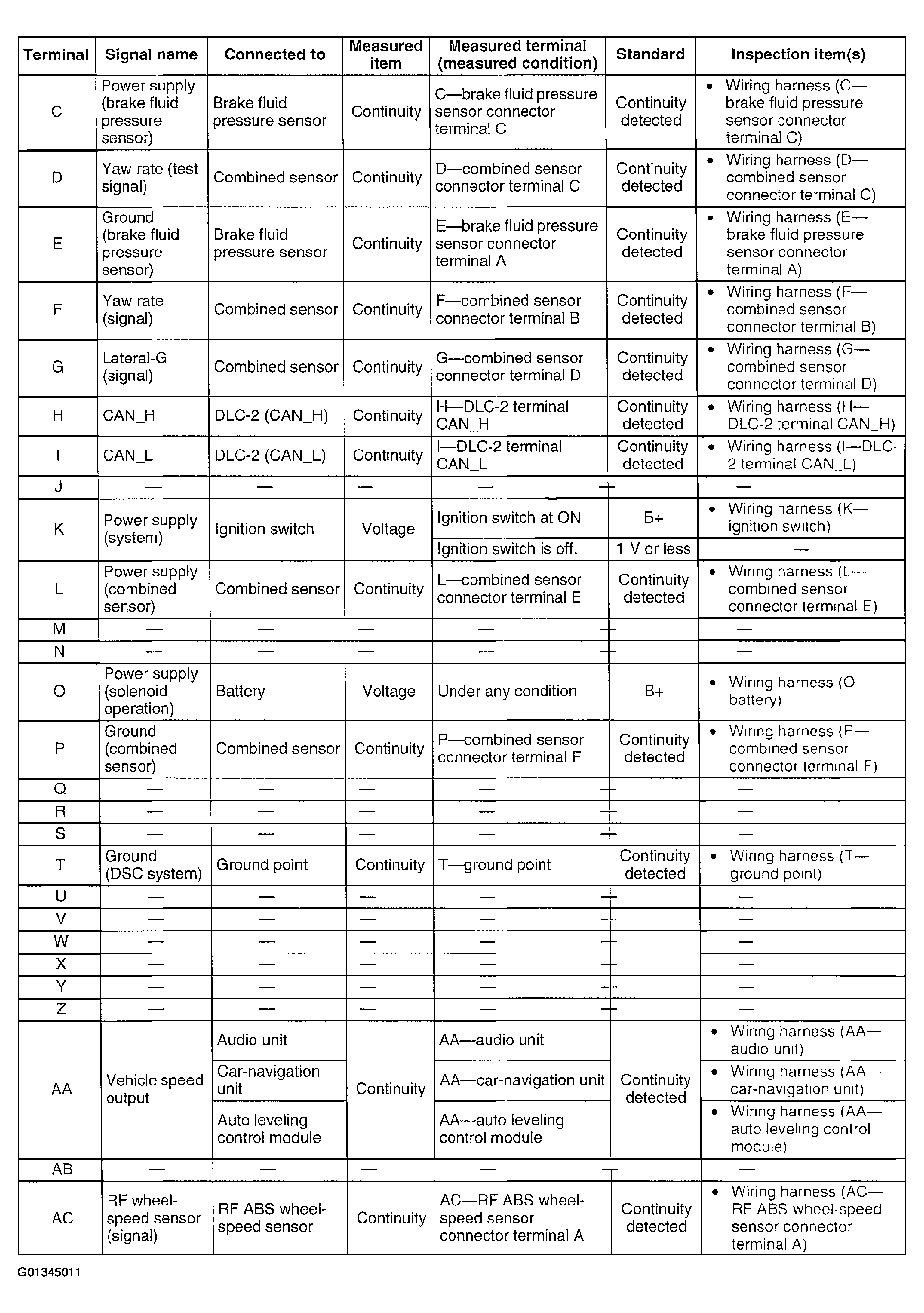

Fig 3: Standard (Reference Value) - (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

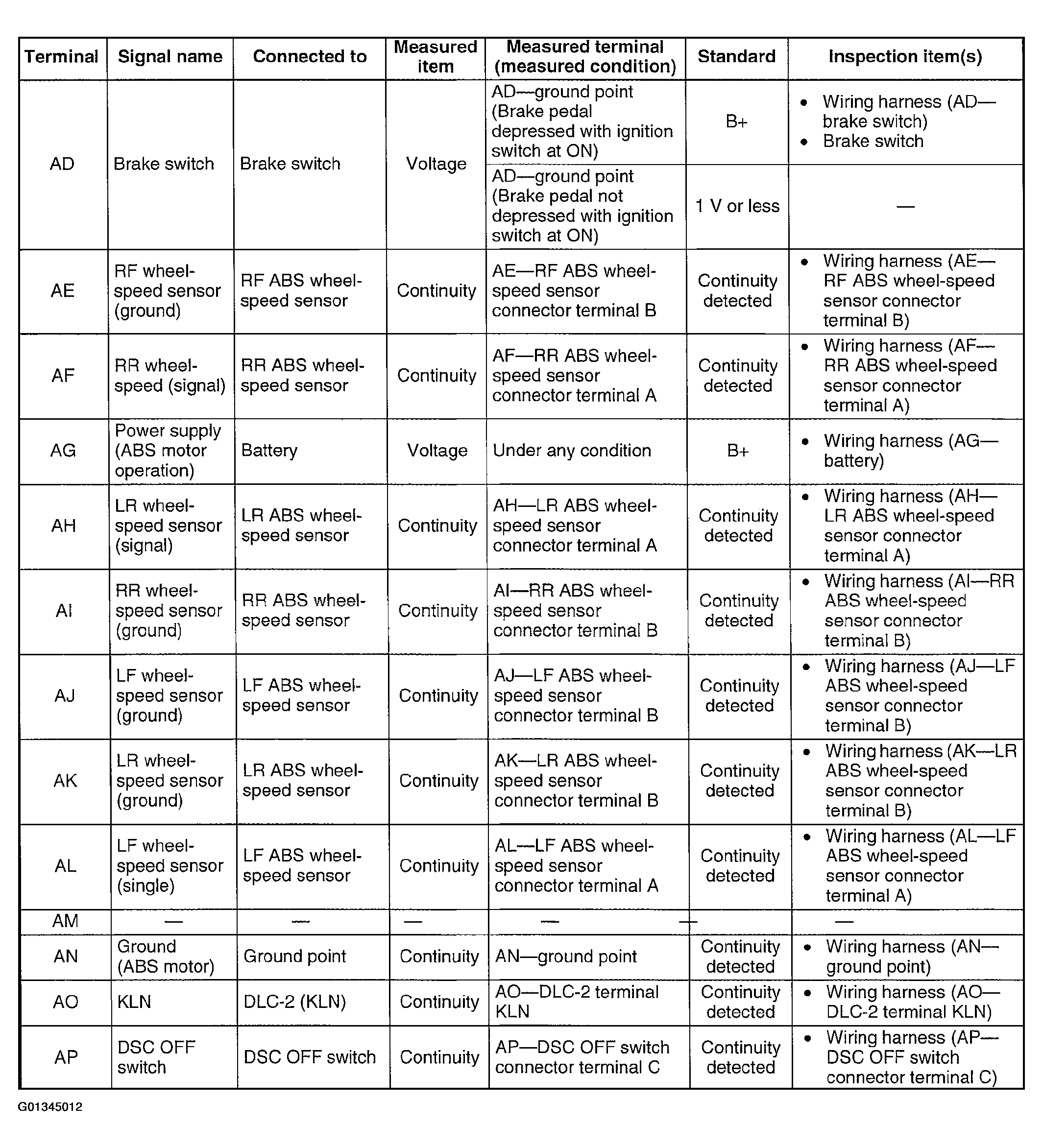

Fig 4: Standard (Reference Value) - (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
