Connector Installation Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. After connecting the connector, rotate the lock lever in the direction of the arrow to install the DSC HU/CM connector.

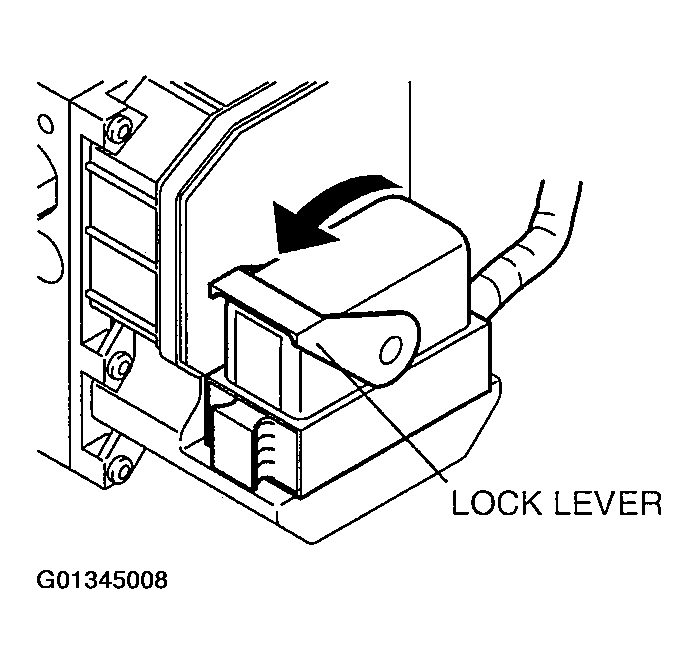

    Fig 1: Locating Lock Lever Installing Direction
    G01345008Courtesy of MAZDA MOTORS CORP.
