Door Lock Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the passenger-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the door lock control module connector.
  4. Remove the nut.
  5. Remove the door lock control module.
  6. Install in the reverse order of removal.

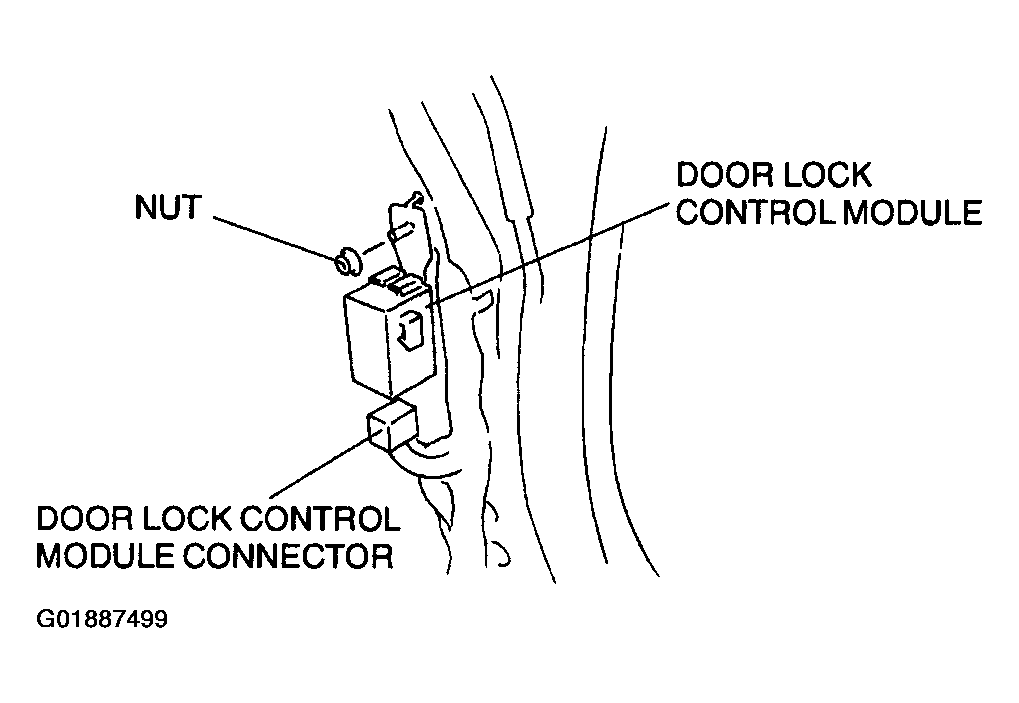

    Fig 1: Removing Door Lock Control Module And Nut
    G01887499Courtesy of MAZDA MOTORS CORP.
