Door Lock Switch Inspection

Remove the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .)
Inspect for continuity between the door lock switch terminals using an ohmmeter.
- If not as specified, replace the door lock switch.

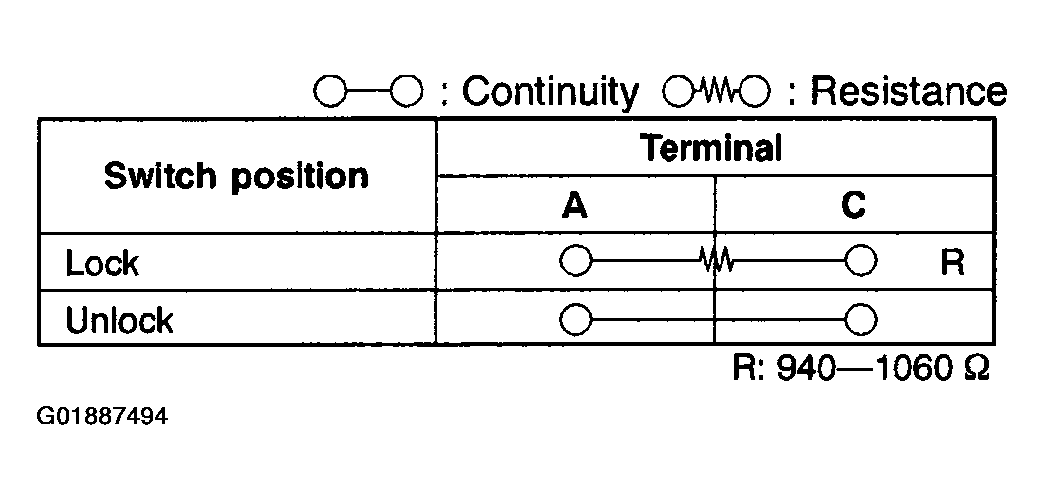

  Fig 1: Inspecting Door Lock Switch Continuity (1 Of 2)
  Courtesy of MAZDA MOTORS CORP.

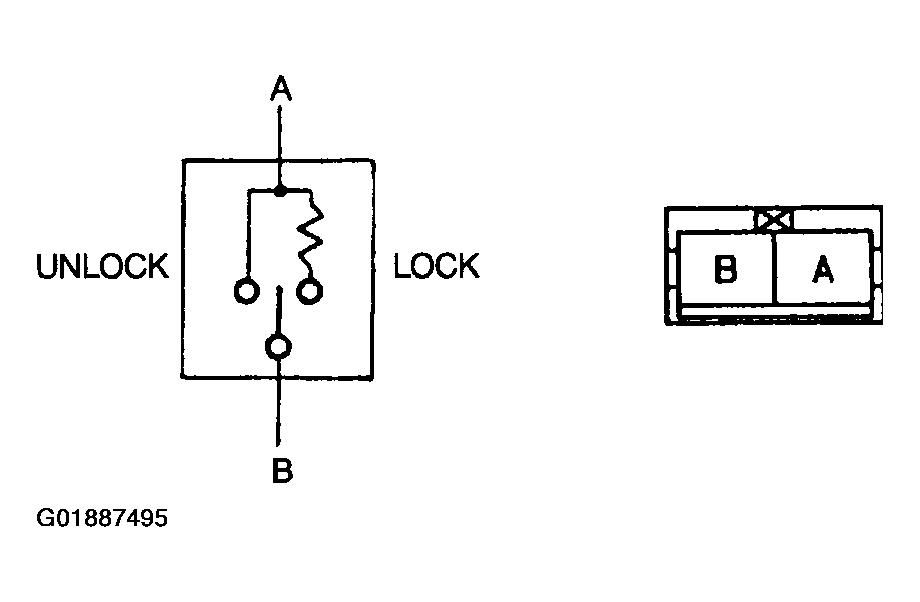

  Fig 2: Inspecting Door Lock Switch Continuity (2 Of 2)
  Courtesy of MAZDA MOTORS CORP.
