Front Door Lock-Link Switch Inspection: Notes

NOTE:
  • The front door lock-link switch is together with the front door lock actuator.
  1. Disconnect the front door lock actuator connector.
  2. Inspect for continuity between the front door lock-link switch terminals using an ohmmeter.
    • If not as specified, replace the front door lock actuator.

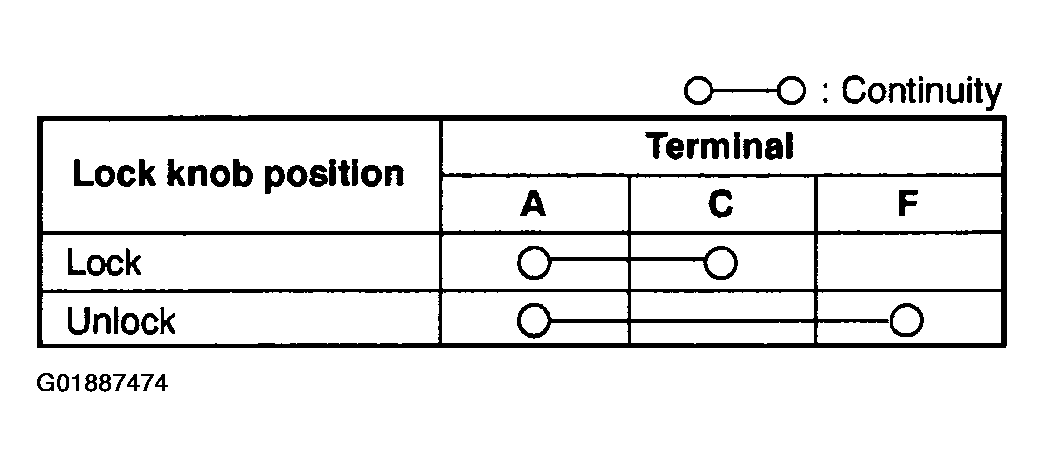

      Fig 1: Inspecting Front Door Lock-Link Switch Continuity
      G01887474Courtesy of MAZDA MOTORS CORP.
