Immobilizer System Location Index

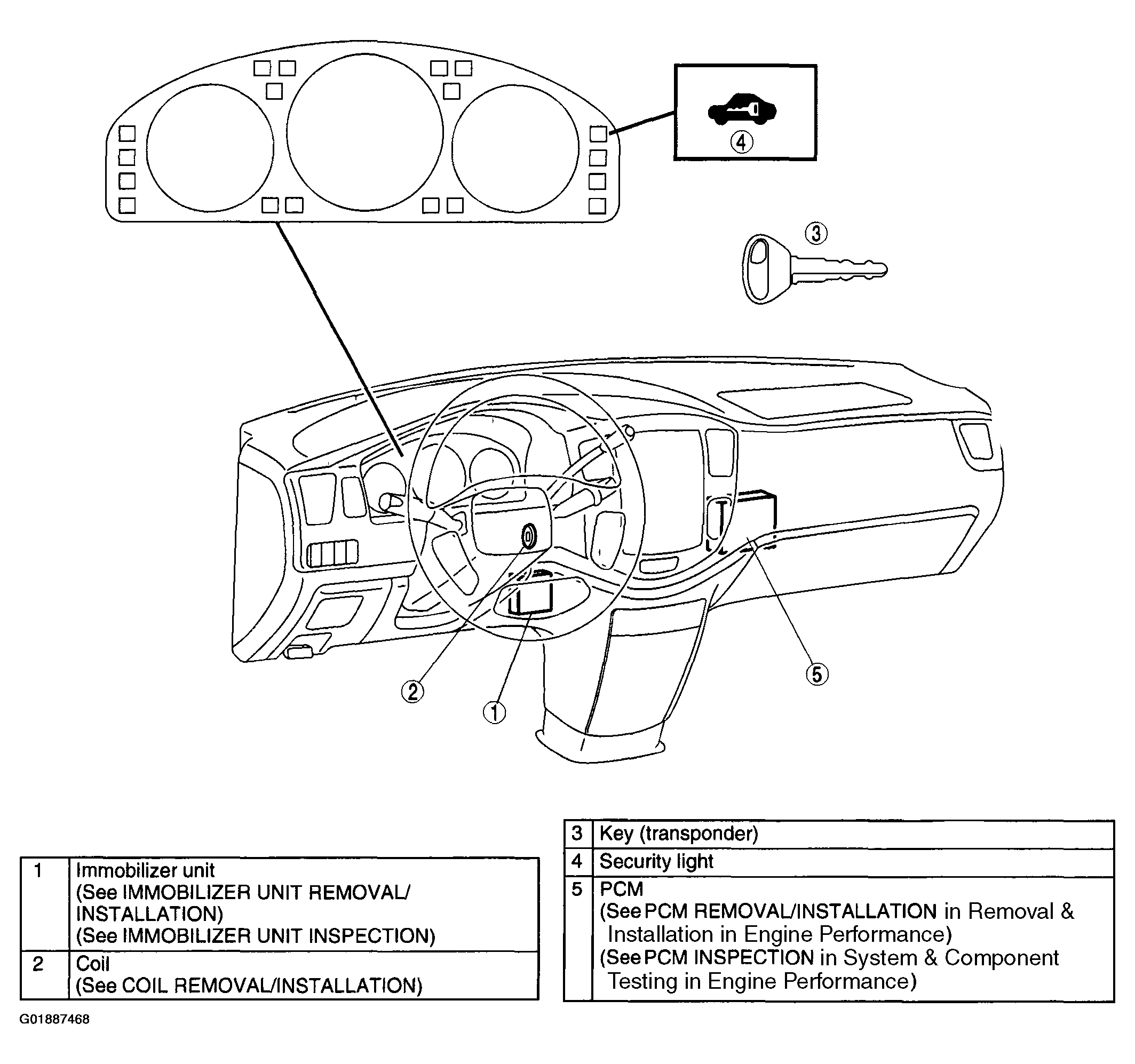

Fig 1: Immobilizer System Component Index

G01887468

Courtesy of MAZDA MOTORS CORP.
