Keyless Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figure below.

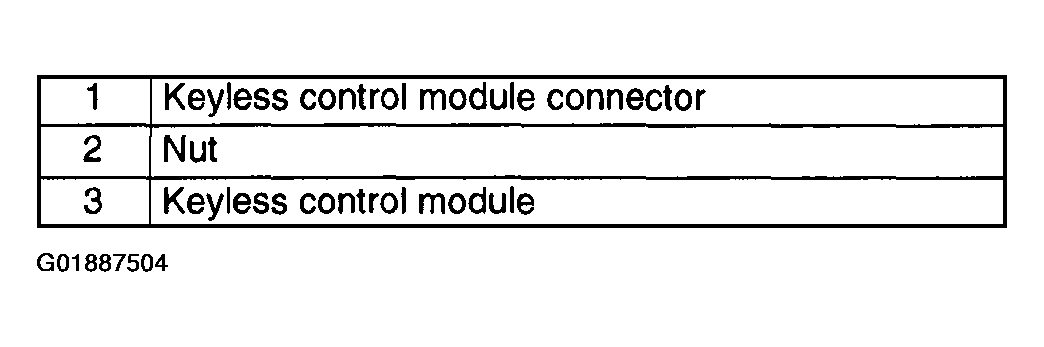

    Fig 1: Keyless Control Module Component Table
    G01887504Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.

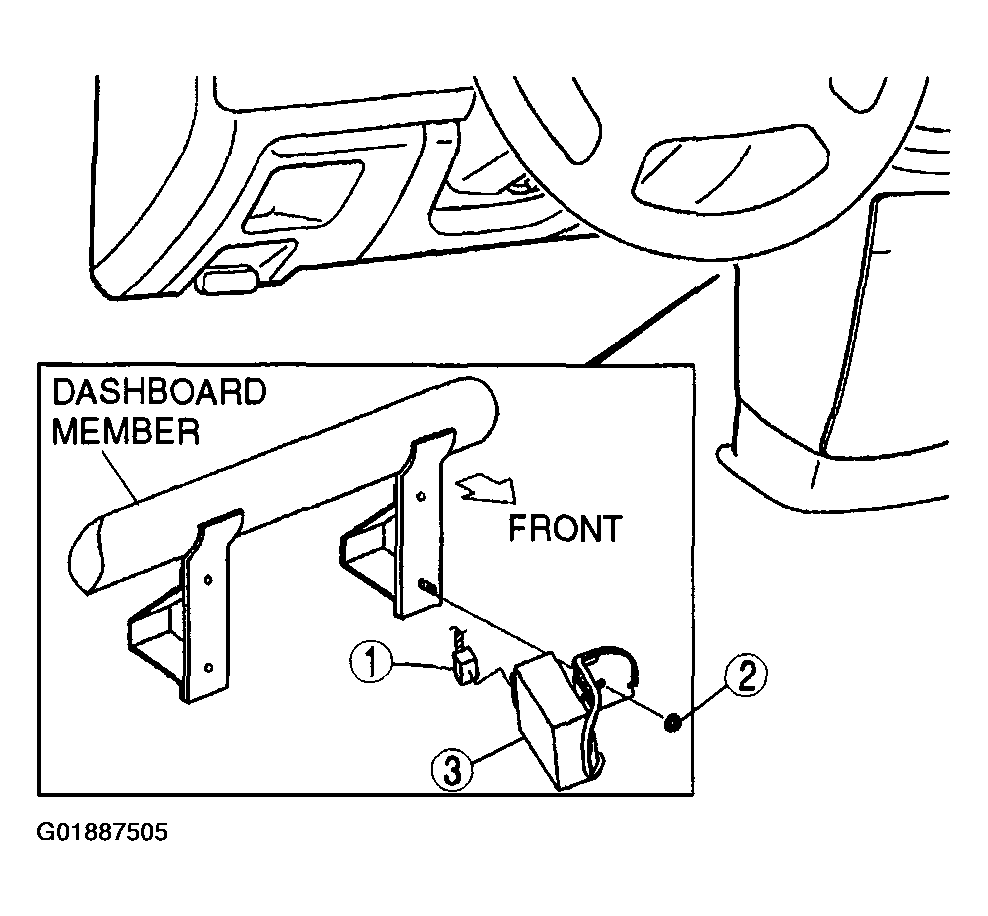

    Fig 2: Identifying Keyless Control Module Component
    G01887505Courtesy of MAZDA MOTORS CORP.
