Liftgate Lock Actuator Inspection

Disconnect the liftgate lock actuator connector.
Apply battery positive voltage to the liftgate lock actuator terminals and inspect the operation of the liftgate lock actuator.
- If not as specified, replace the liftgate lock.

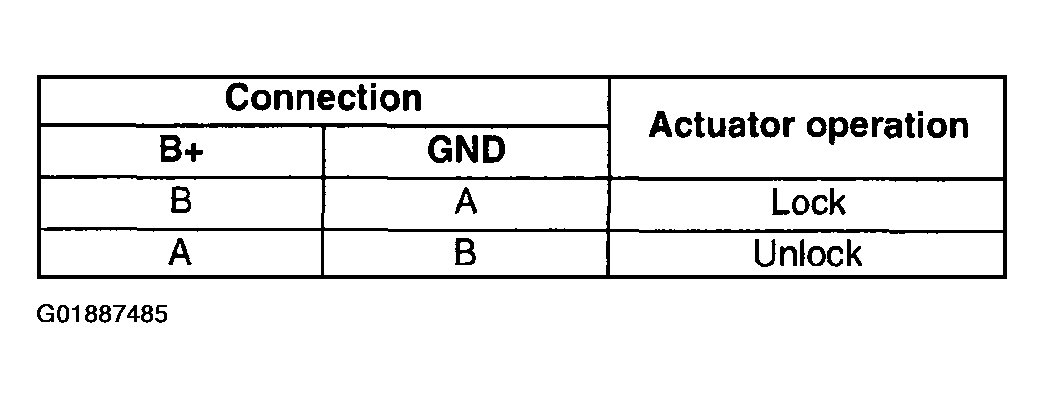

  Fig 1: Liftgate Lock Actuator Operation Table
  Courtesy of MAZDA MOTORS CORP.

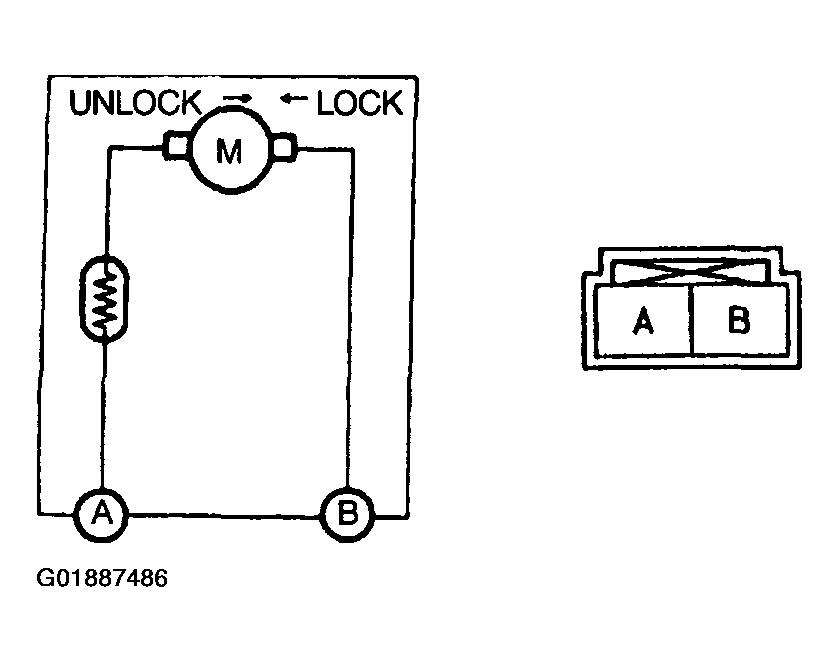

  Fig 2: Applying Battery Positive Voltage To Liftgate Lock Actuator Terminals
  Courtesy of MAZDA MOTORS CORP.
