Sliding Door Lock-Link Switch Inspection

NOTE:

The sliding door lock-link switch is together with the sliding door lock actuator.

Disconnect the sliding door lock actuator connector.
Inspect for continuity between the sliding door lock-link switch terminals using an ohmmeter.
- If not as specified, replace the sliding door lock actuator.

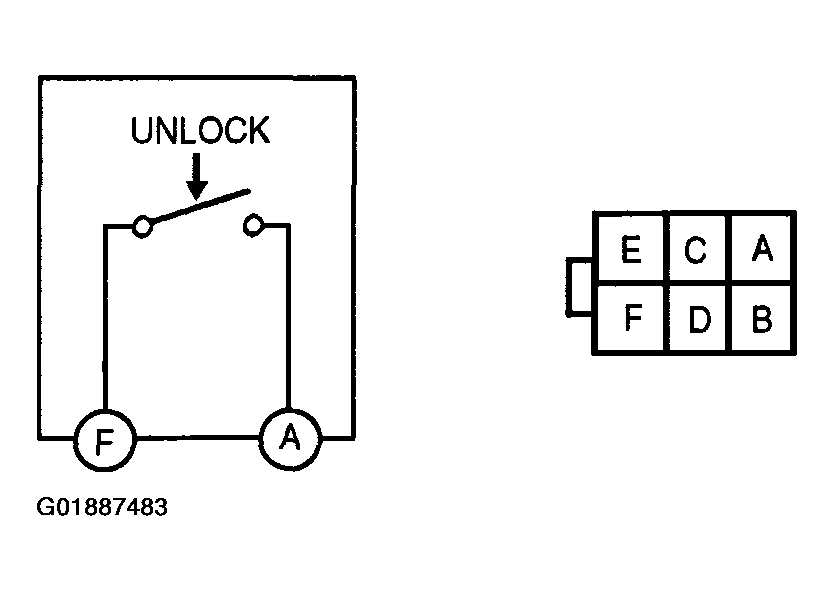

  Fig 1: Inspecting Door Lock-Link Switch Continuity (1 Of 2)
  Courtesy of MAZDA MOTORS CORP.

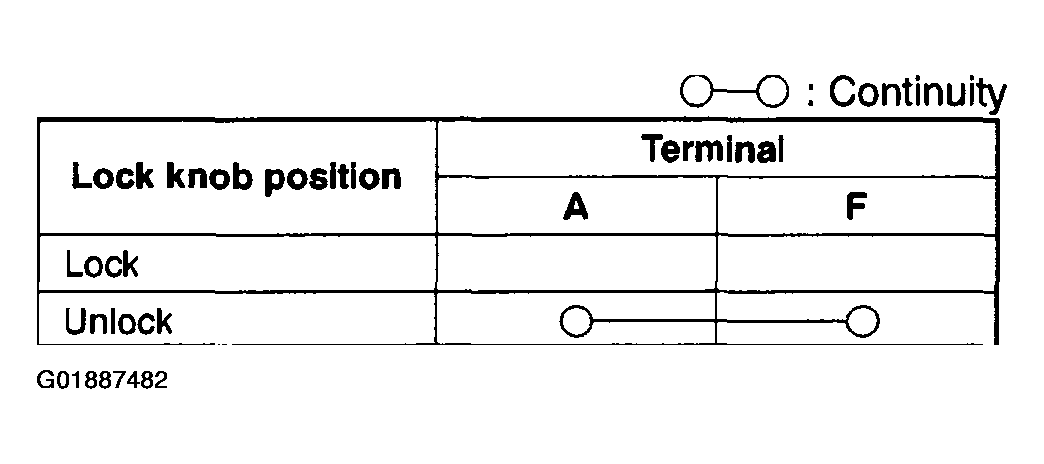

  Fig 2: Inspecting Door Lock-Link With Continuity (2 Of 2)
  Courtesy of MAZDA MOTORS CORP.
