Theft-Deterrent Control Module Removal/Installation

NOTE:

Because the lock section of the module is damaged easily, do not remove the module from the bracket unless replacement is necessary. Always perform an inspection of the theft-deterrent control module before removal.

Disconnect the negative battery cable.
Remove the bracket.
Disconnect the theft-deterrent control module connector.
Remove the theft-deterrent control module by prying the lock section of the side part with a flathead screwdriver.

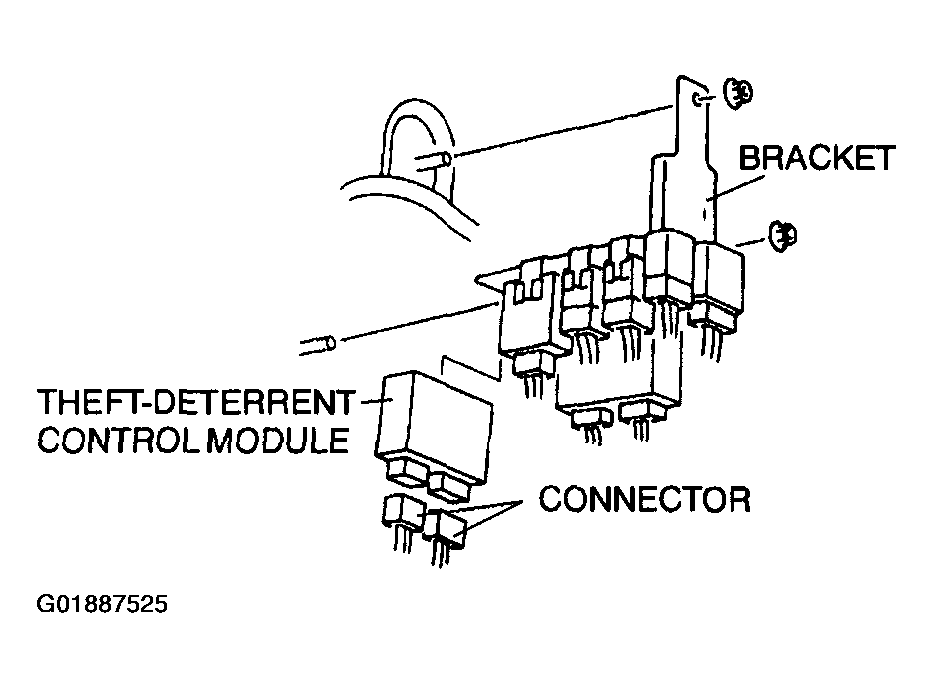

Fig 1: Removing Theft-Deterrent Control Module By Prying Lock Section
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
