Theft-Deterrent System Location Index

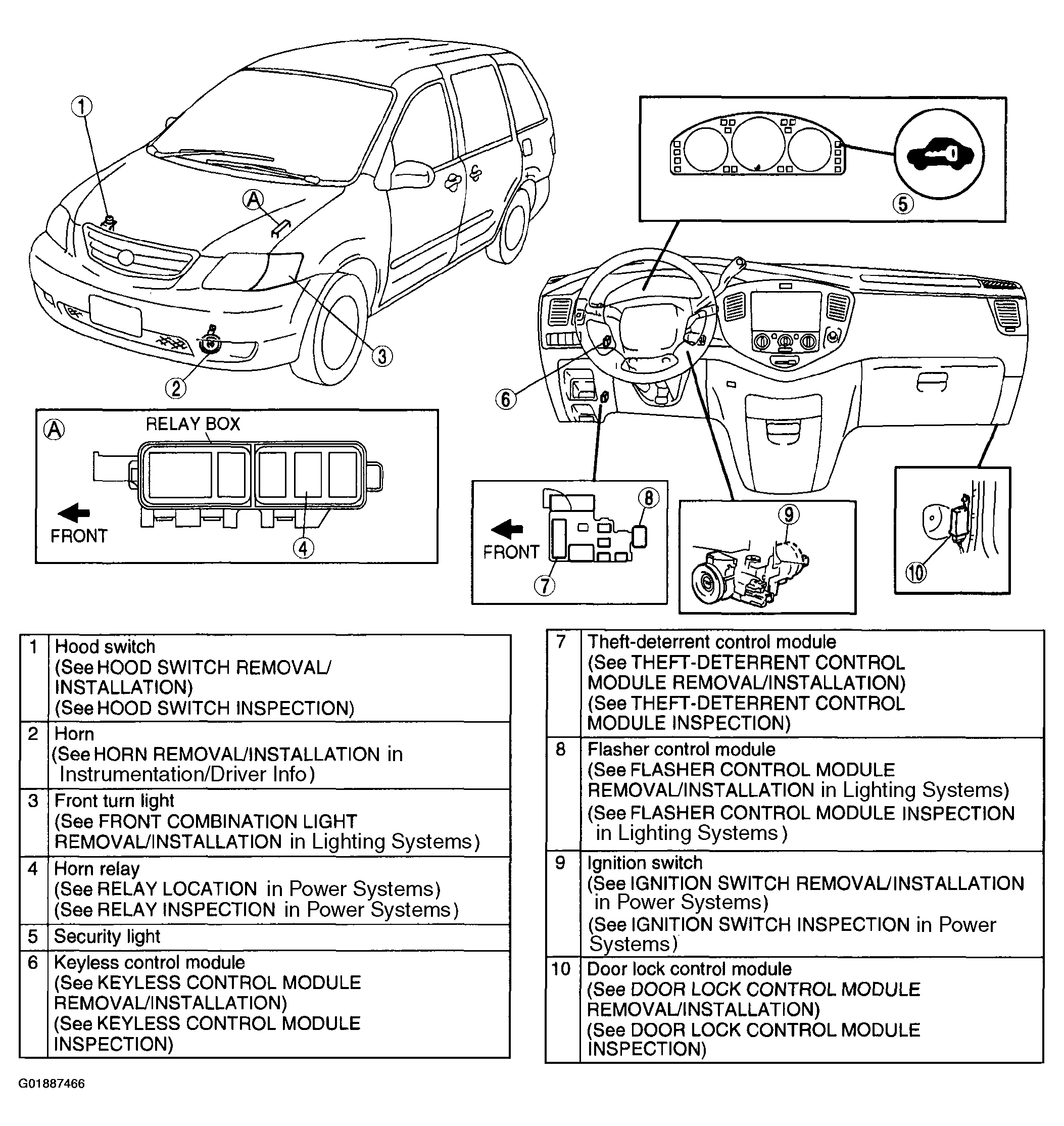

Fig 1: Theft-Deterrent System Component Index (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

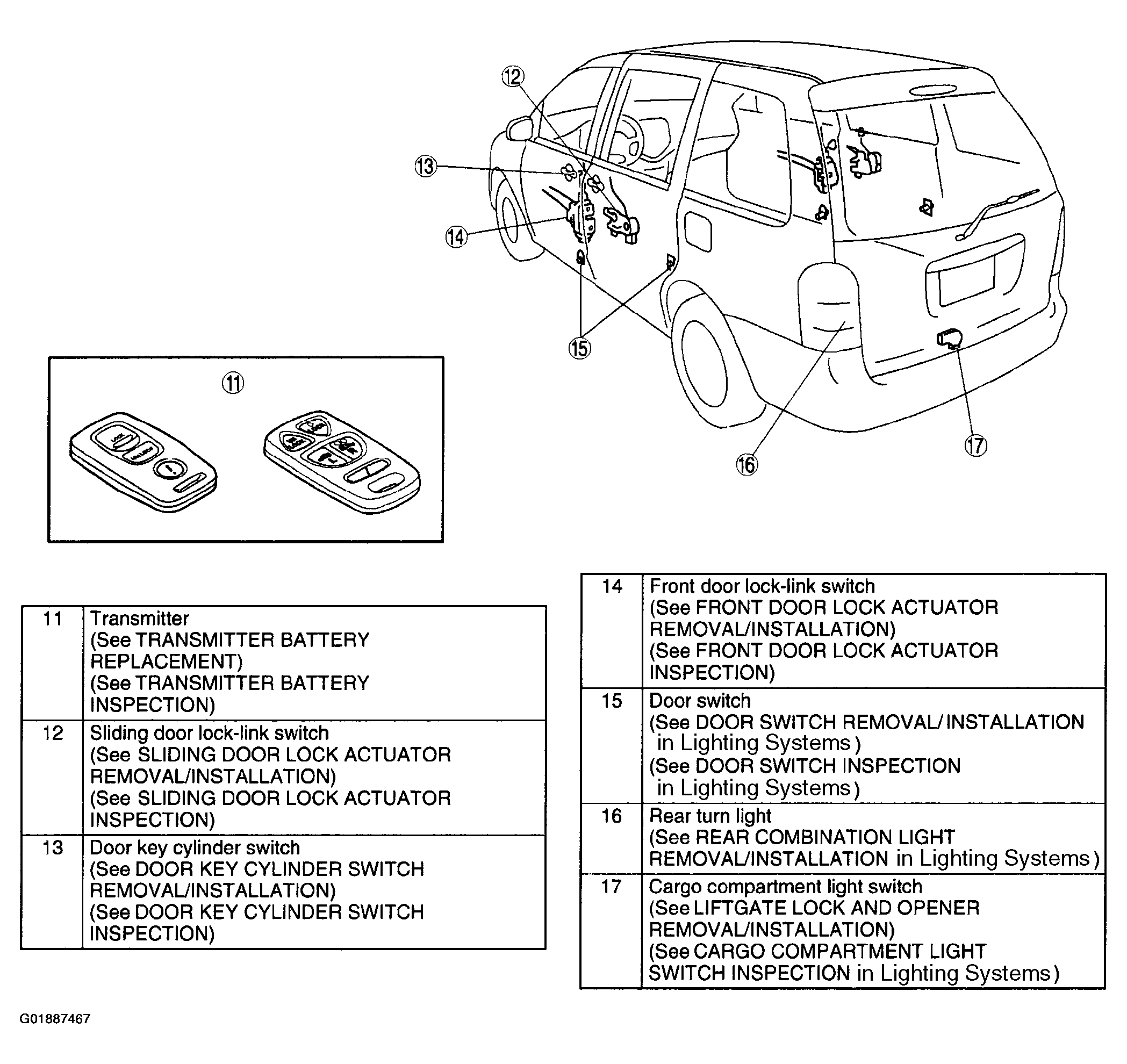

Fig 2: Theft-Deterrent System Component Index (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
