Transmitter Battery Replacement

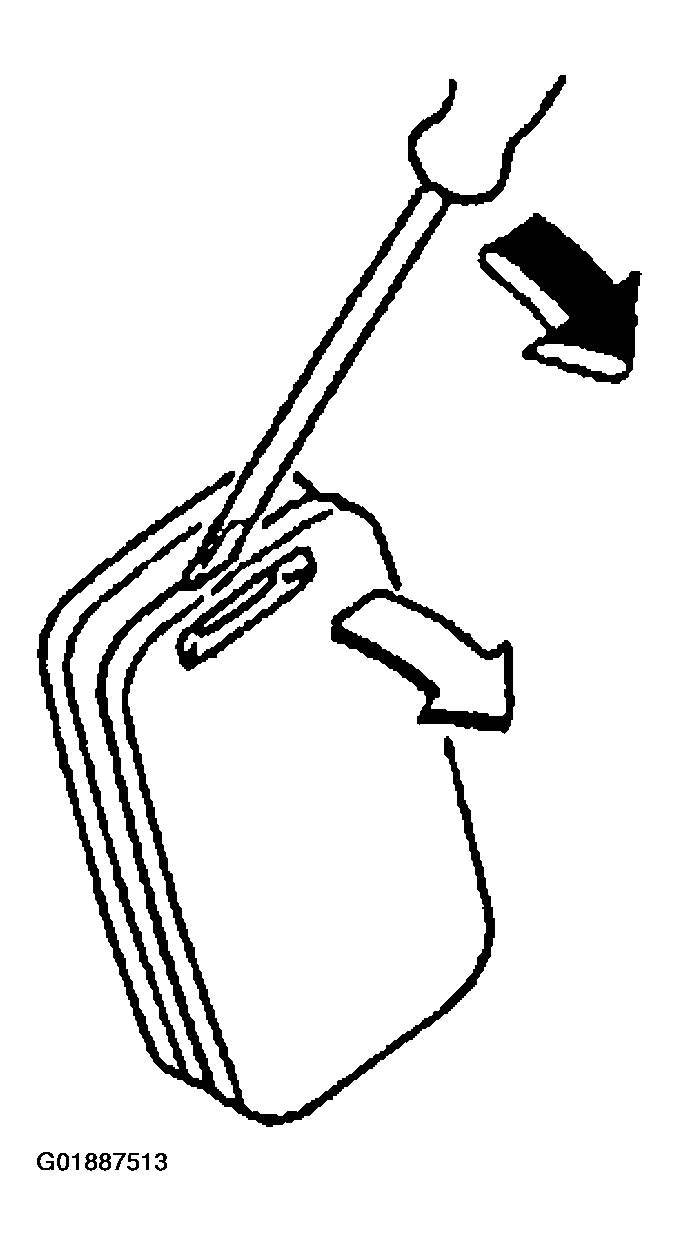

  1. Insert a small screwdriver into the slot and gently pry open the transmitter.
    Fig 1: Inserting Small Screwdriver Into Slot And Gently Pry Open Transmitter
    G01887513Courtesy of MAZDA MOTORS CORP.

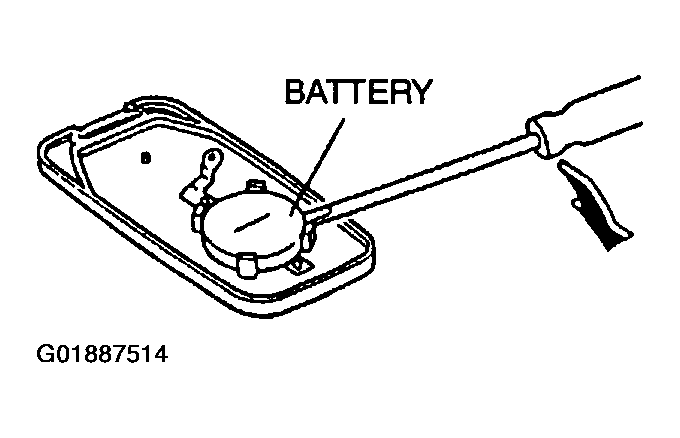

  2. Remove the battery out.
    Fig 2: Removing Battery Out
    G01887514Courtesy of MAZDA MOTORS CORP.
  3. Install the new batteries with the negative side facing up.

    Battery specification

    Lithium CR 2025 x 1

    NOTE:
    • The batteries will last about 2 years  when used 10 times  a day.

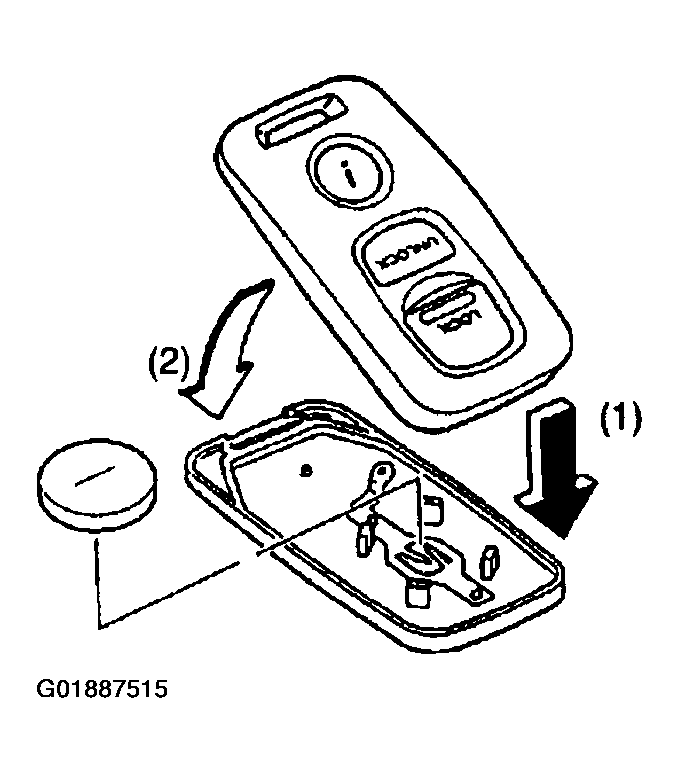

  4. Align the front and back covers. (1)
  5. Snap the transmitter shut. (2)
    Fig 3: Aligning Front And Back Covers
    G01887515Courtesy of MAZDA MOTORS CORP.
