Rear Door Glass And Guide Removal/Installation

Lower or raise the rear door glass so that the distance from the top of the rear door glass at the rear end to the upper part of the front beltline molding is 260 mm {10 in}.
Disconnect the negative battery cable.
Remove the sliding door trim. (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)

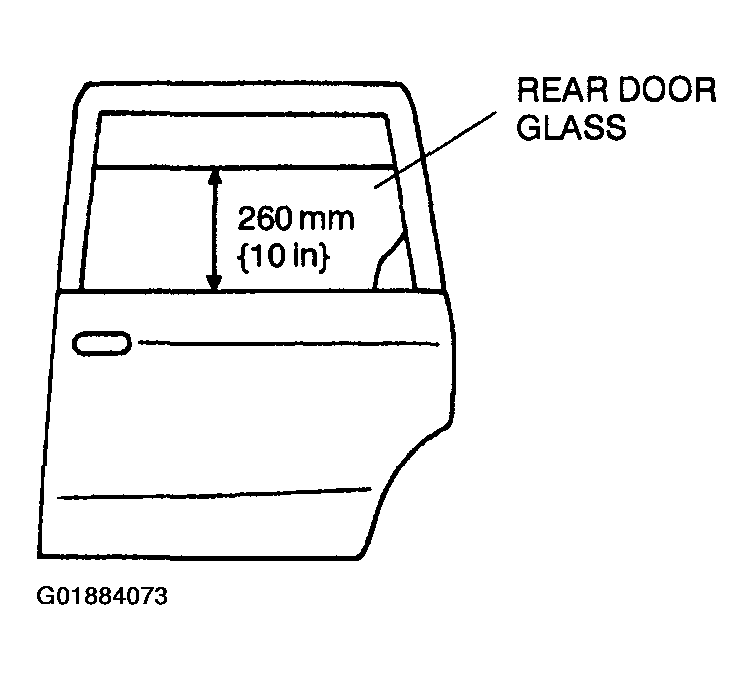

Fig 1: Measuring Distance From Top Of Rear Door Glass
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the figures.

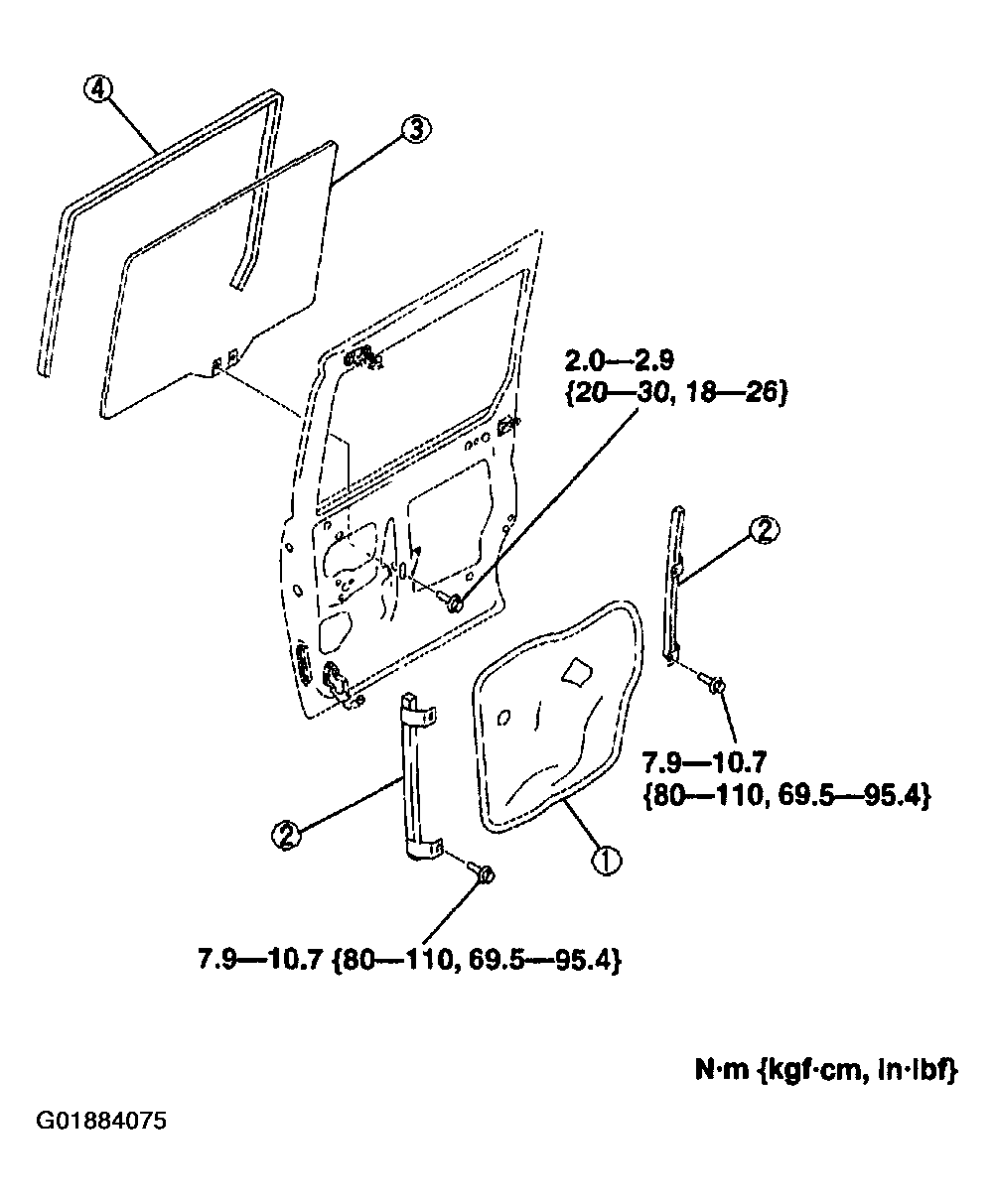

Fig 2: Removing Rear Door Glass And Guide
Courtesy of MAZDA MOTORS CORP.

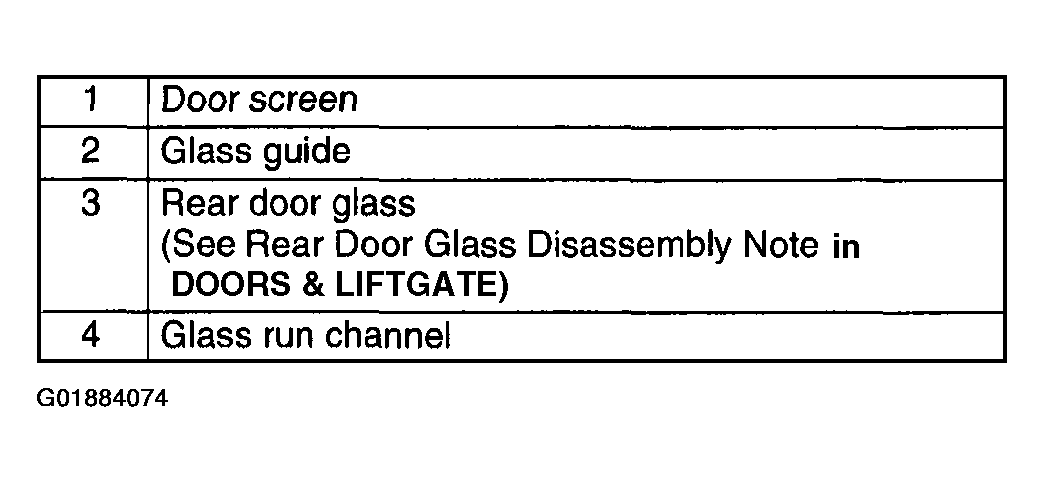

Fig 3: Rear Door Glass And Guide Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
