Key Reminder Switch Inspection

Disconnect the key reminder switch connector.
Inspect for continuity between the key reminder switch terminals using an ohmmeter.
- If not as specified, replace the key reminder switch.

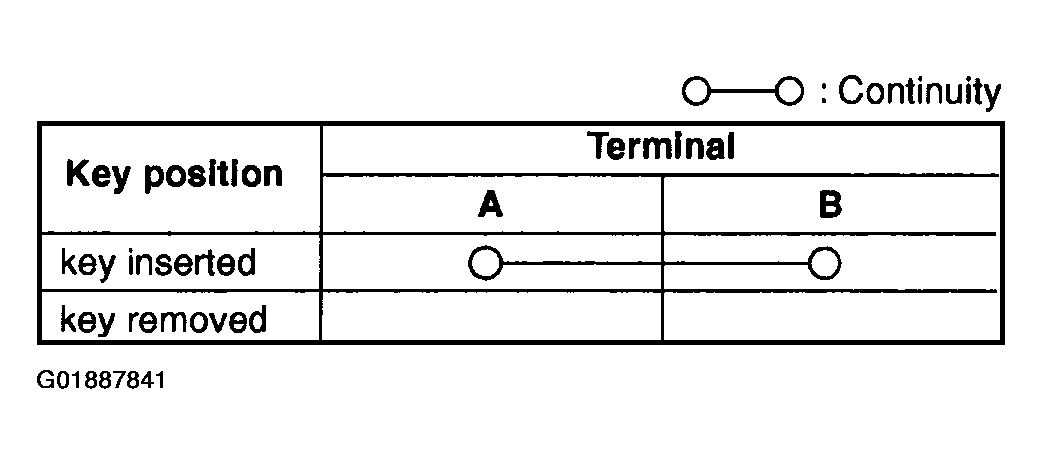

  Fig 1: Checking Key Reminder Switch Continuity
  Courtesy of MAZDA MOTORS CORP.

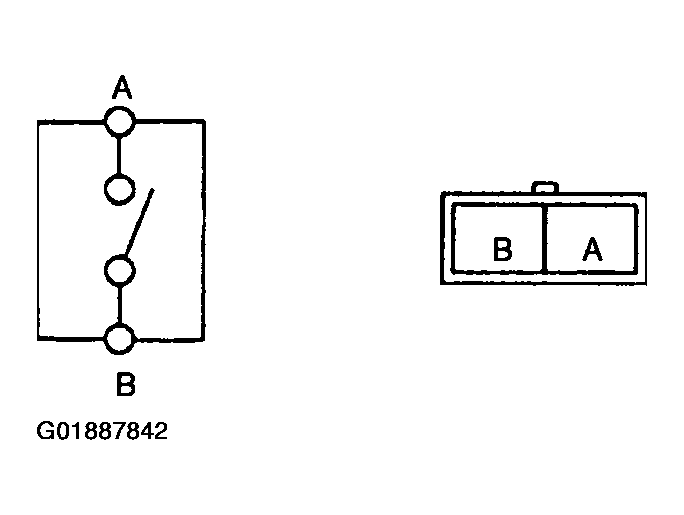

  Fig 2: Identifying Key Reminder Switch Terminals & Circuits
  Courtesy of MAZDA MOTORS CORP.
