Main Fuse Removal/Installation

Disconnect the negative battery cable.
Remove the main fuse block cover.
Remove in the order indicated in the figure below.

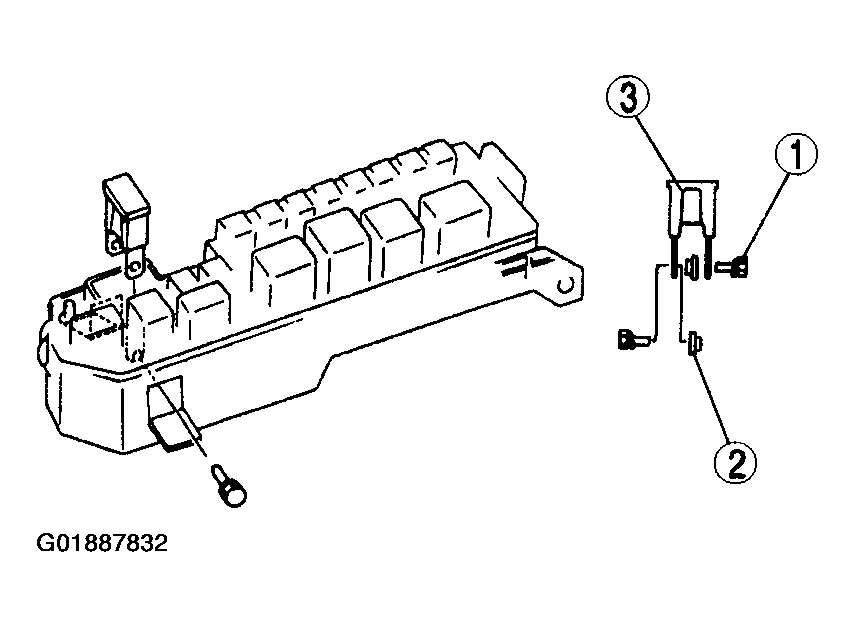

Fig 1: Removing Main Fuse
Courtesy of MAZDA MOTORS CORP.

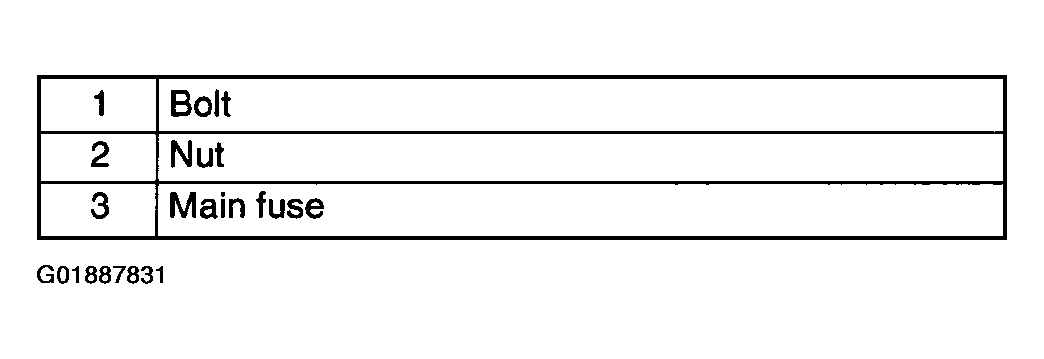

Fig 2: Removing Main Fuse Legend
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
