Power Seat Switch Inspection
- Disconnect the power seat switch connector.
- Remove the seat back trim. (See
FRONT SEAT DISASSEMBLY/ASSEMBLY
.)
- Disconnect the recliner motor connector.
- Remove the seat cushion trim. (See
FRONT SEAT DISASSEMBLY/ASSEMBLY
.)
- Disconnect the rear tilt motor connector.

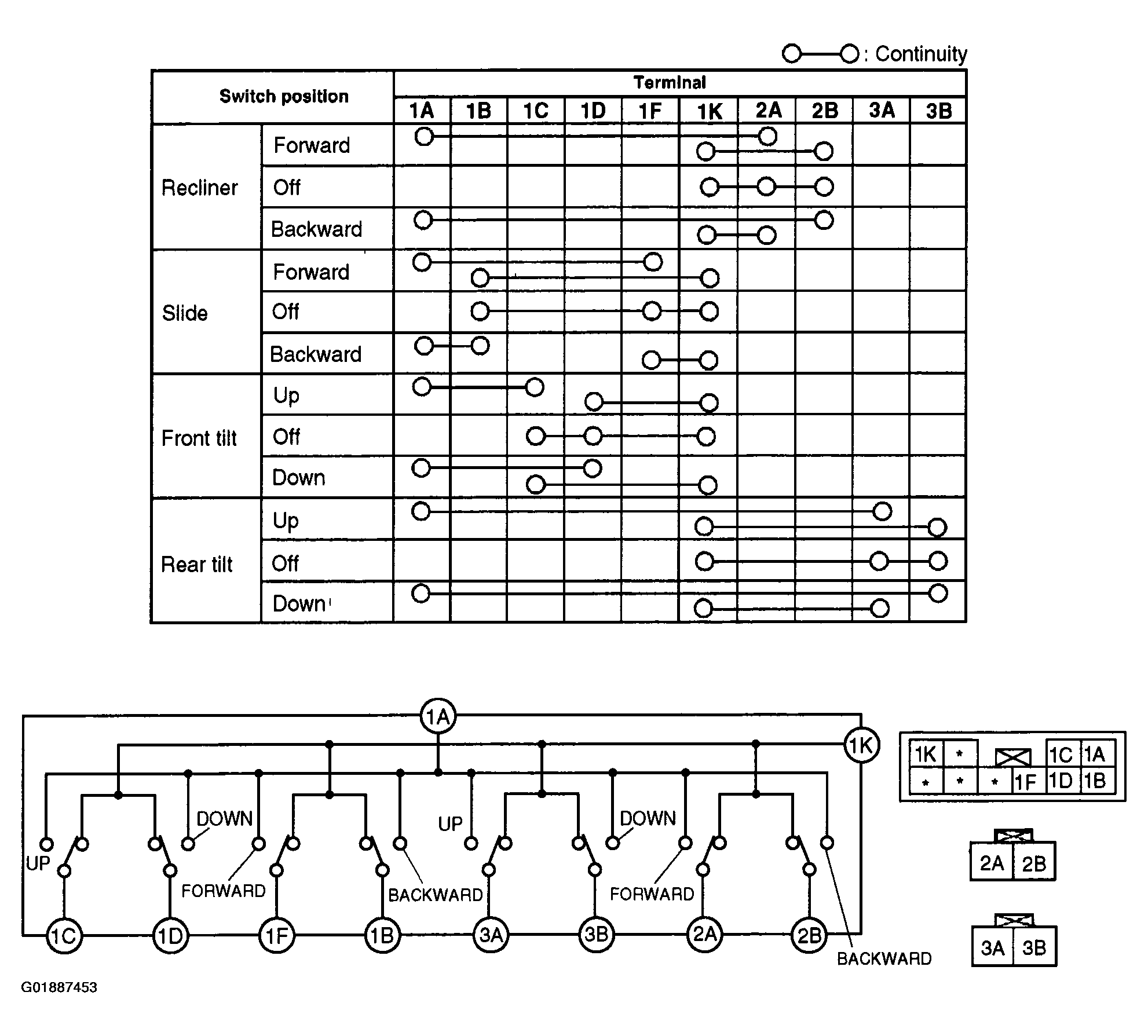

- Inspect for continuity between the power seat switch, recliner motor connector, and rear tilt motor connector terminals using an ohmmeter.
- If not as specified, replace the power seat switch.
Courtesy of MAZDA MOTORS CORP.
