Slide Motor Inspection

  1. Disconnect the slide motor connector.
  2. Inspect the slide motor operation when B+ is applied to the terminals as shown.
    • If not as specified, replace the seat cushion frame.

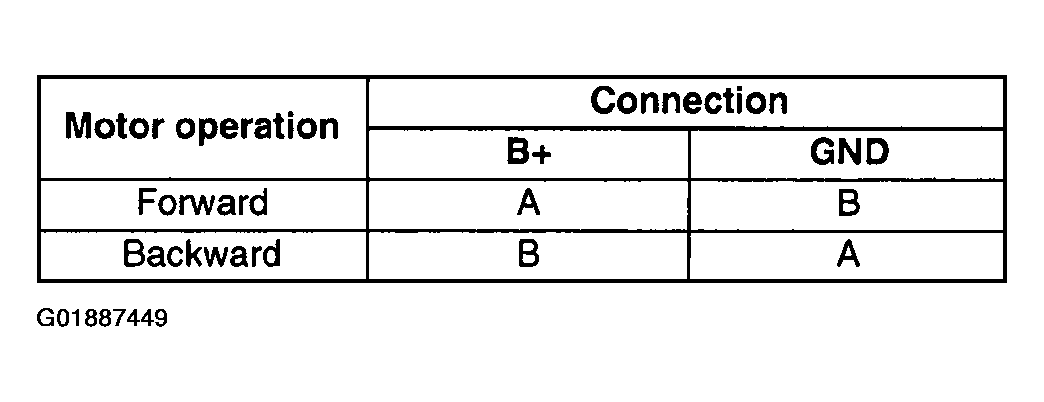

      Fig 1: Slide Motor Operation (1 Of 2)
      G01887449Courtesy of MAZDA MOTORS CORP.

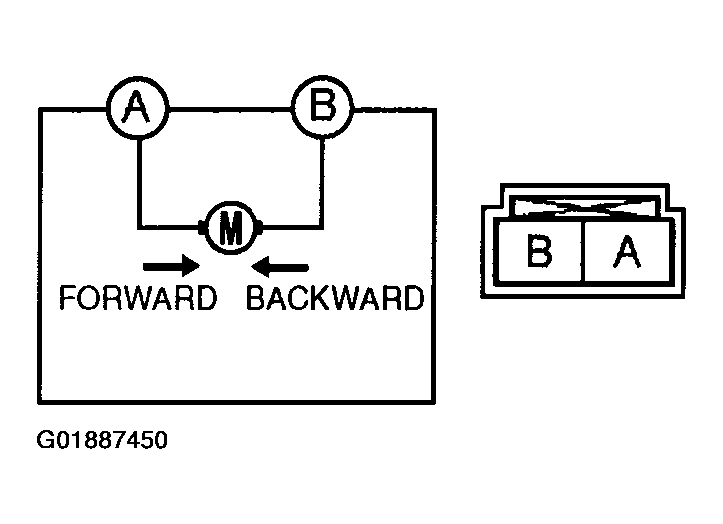

      Fig 2: Slide Motor Operation (2 Of 2)
      G01887450Courtesy of MAZDA MOTORS CORP.
