Base Removal

  1. Remove the rearview mirror.
  2. Wind each end of a wire around a bar.
    NOTE:
    • Use a long sawing action to spread the work over the whole length of the SST  (piano wire) to prevent it from breaking.
  3. Saw through the sealant to remove the base.

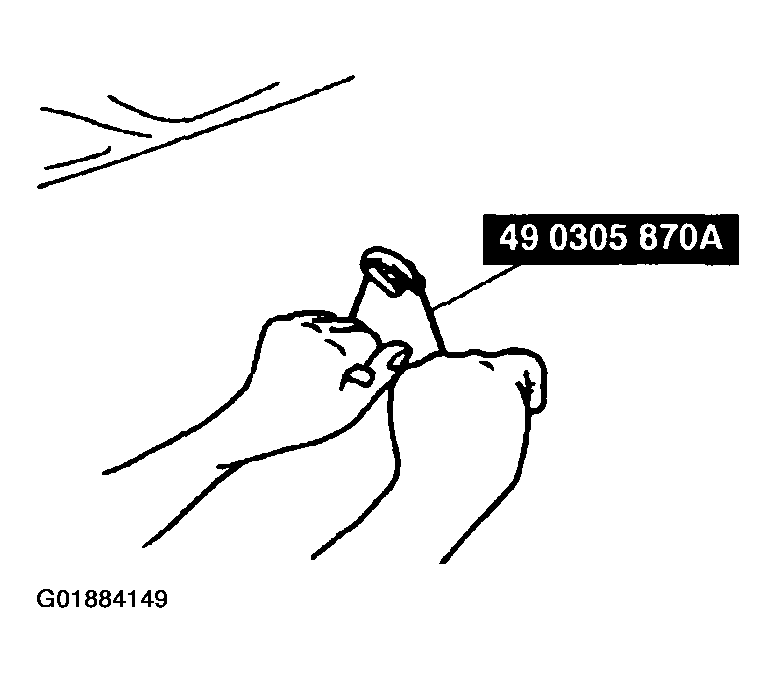

    Fig 1: Removing Rearview Mirror Base
    G01884149Courtesy of MAZDA MOTORS CORP.
