Filament Repair

  1. Use isopropyl alcohol to clean around the damaged section of the filament.
  2. Attach tape above and below the damaged section of the filament.

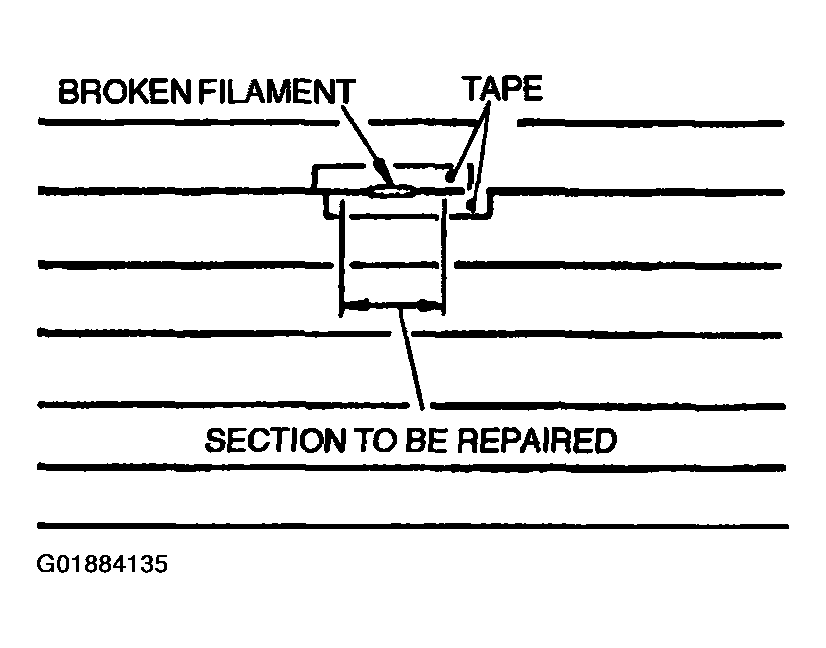

    Fig 1: Attaching Tape Above And Below Damaged Section Of Filament
    G01884135Courtesy of MAZDA MOTORS CORP.
  3. Using a small brush or marking pen, repair the filament with silver paint or equivalent.
  4. After 2-3 minutes  , carefully remove the tape without disturbing the repaired area.
    CAUTION:
    • Do not use the rear window defroster until the paint is completely dry. It may cause other malfunctions if it is used before the paint is dry.
  5. Use a hot air blower heated to 150°C {302°F}  for 30 minutes  or let the paint set for 24 hours  at 25 °C {77 °F}  to allow it to dry completely.
