Power Window Motor Disassembly Note

  1. Hold the drum and the cable with the bracket to prevent them from being pulled out with the power window motor.

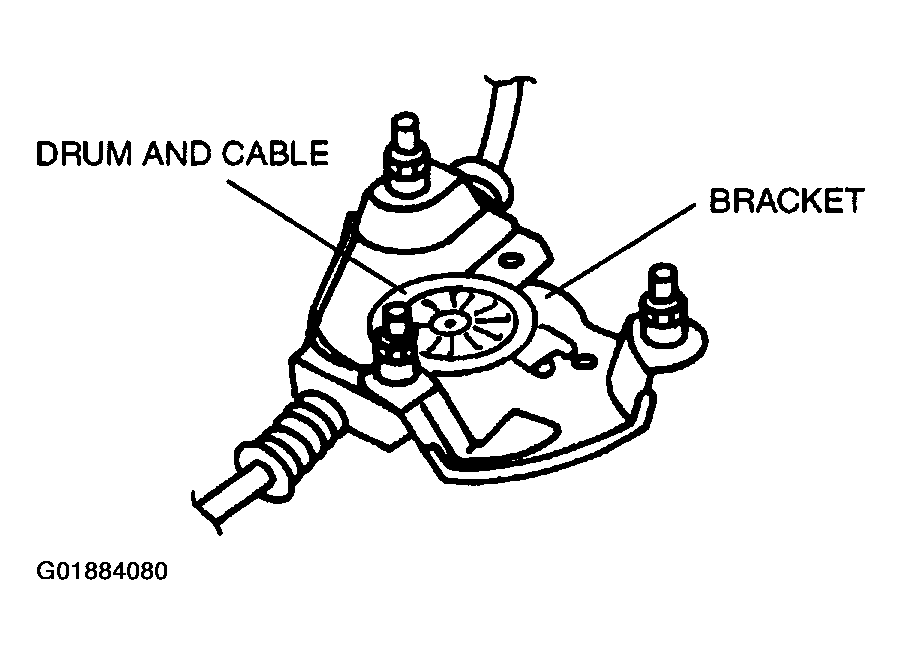

    Fig 1: Identifying Drum, Cable And Bracket
    G01884080Courtesy of MAZDA MOTORS CORP.
