Outside Mirror Glass Installation

  1. Clean and degrease the adhesion surface of the mirror glass.
  2. Stick double-sided adhesive tape onto the back side of the mirror glass.
  3. Warm up the frame using a hot air blower.
  4. Remove the paper backing from the double-sided adhesive tape on the back side of the mirror glass.
  5. Insert the mirror glass into the frame, then press lightly on the glass to secure it.

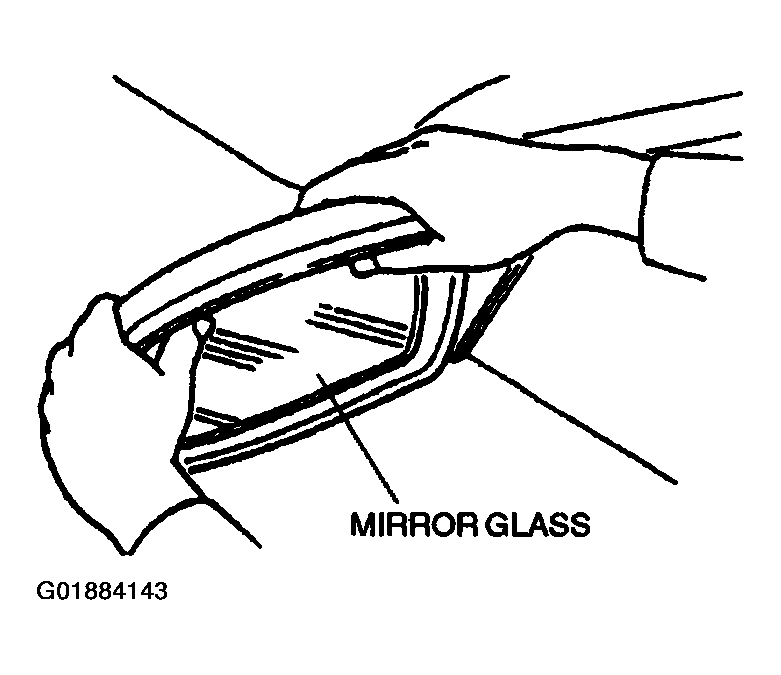

    Fig 1: Installing Outside Mirror Glass
    G01884143Courtesy of MAZDA MOTORS CORP.
