Power Outside Mirror Inspection

Disconnect the power outside mirror connector. (See POWER OUTSIDE MIRROR REMOVAL/INSTALLATION .)
Apply battery positive voltage to the power outside mirror and inspect the operation of the power outside mirror.
- If not as specified, replace the power outside mirror.

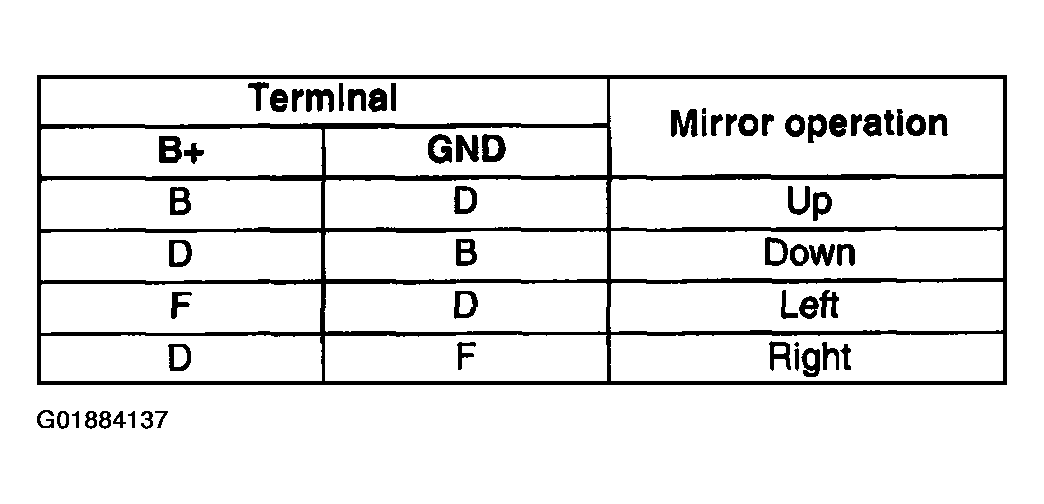

Fig 1: Power Outside Mirror Terminal/Operation Table
Courtesy of MAZDA MOTORS CORP.

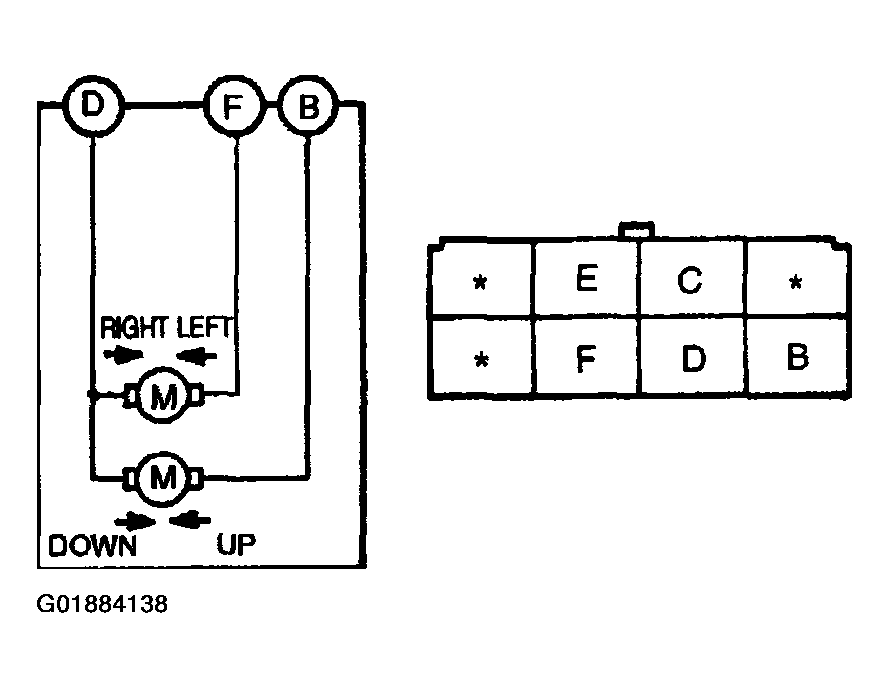

Fig 2: Identifying Power Outside Mirror Circuit & Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity between the power outside mirror terminals.
- If not as specified, replace the power outside mirror.

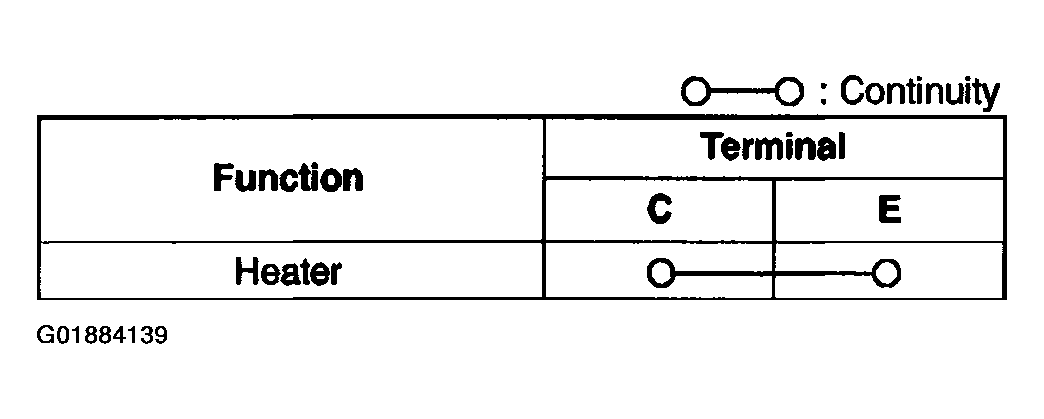

Fig 3: Power Outside Mirror Heater Continuity Table
Courtesy of MAZDA MOTORS CORP.

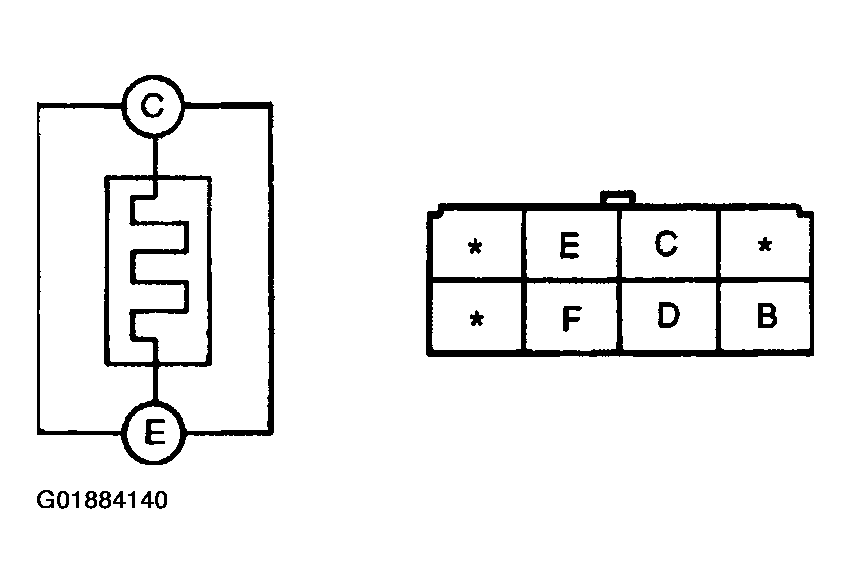

Fig 4: Identifying Power Outside Mirror Heater Circuit & Connector Terminals
Courtesy of MAZDA MOTORS CORP.
