Power Outside Mirror Switch Inspection

  1. Remove the power outside mirror switch. (See POWER OUTSIDE MIRROR SWITCH REMOVAL/INSTALLATION  .)
  2. Inspect for continuity between the power outside mirror switch terminals using an ohmmeter.
    • If not as specified, replace the power outside mirror switch.

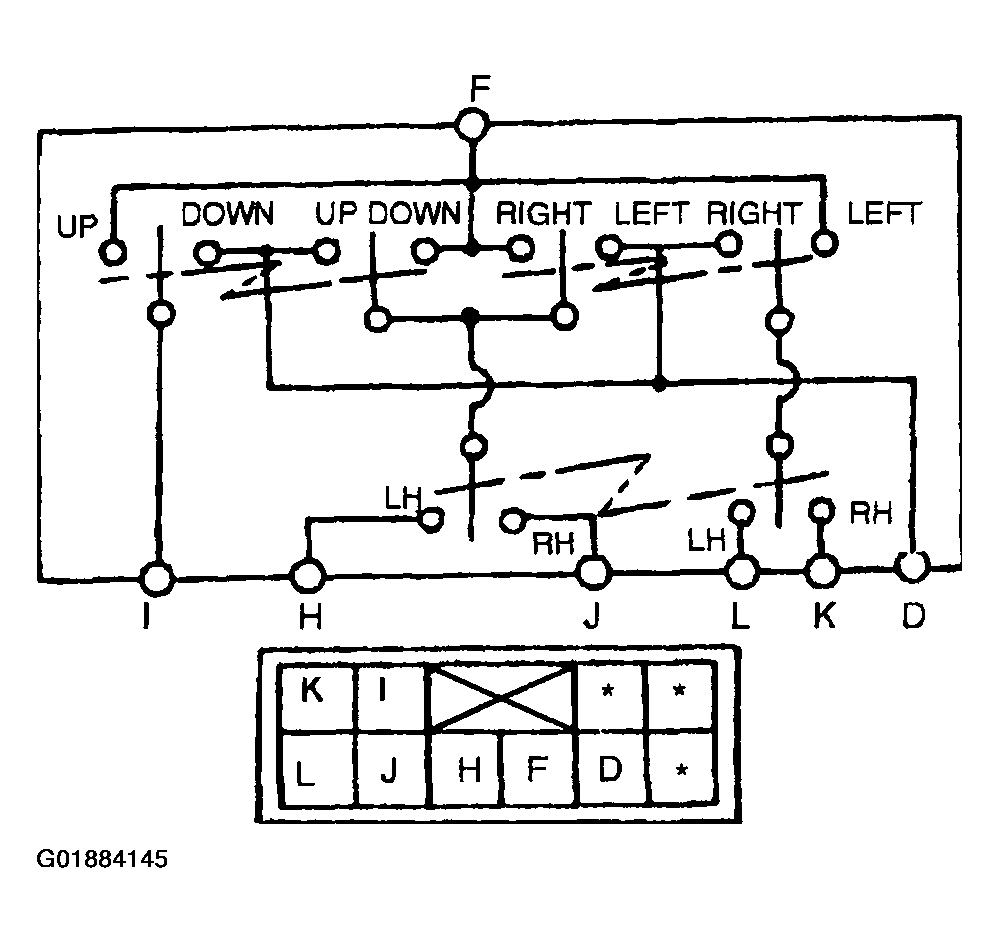

    Fig 1: Identifying Power Outside Mirror Switch Circuit & Connector Terminals
    G01884145Courtesy of MAZDA MOTORS CORP.

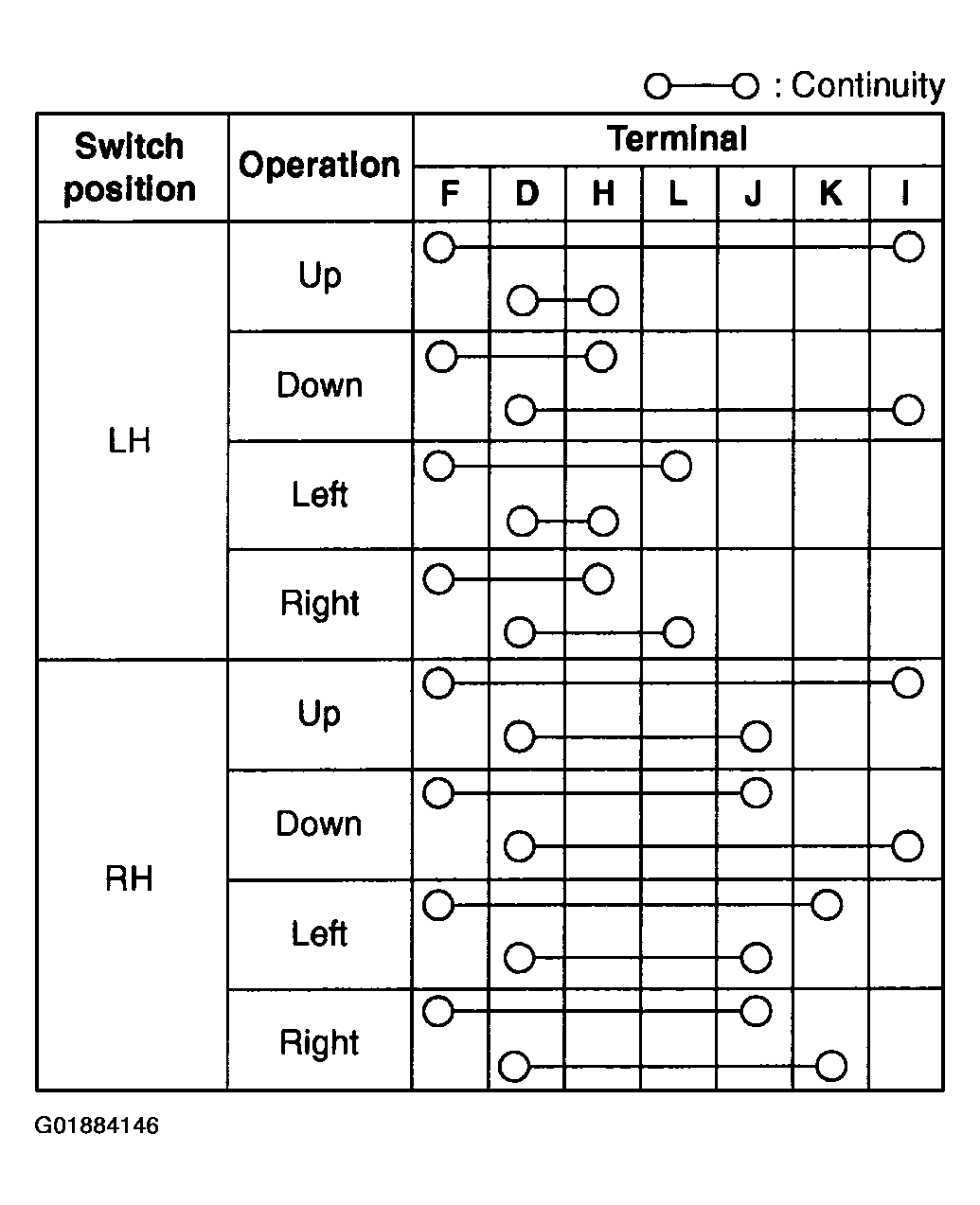

    Fig 2: Power Outside Mirror Switch Position/Continuity Table
    G01884146Courtesy of MAZDA MOTORS CORP.
