Power Outside Mirror Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
  3. Remove the screws, and remove the power outside mirror switch.

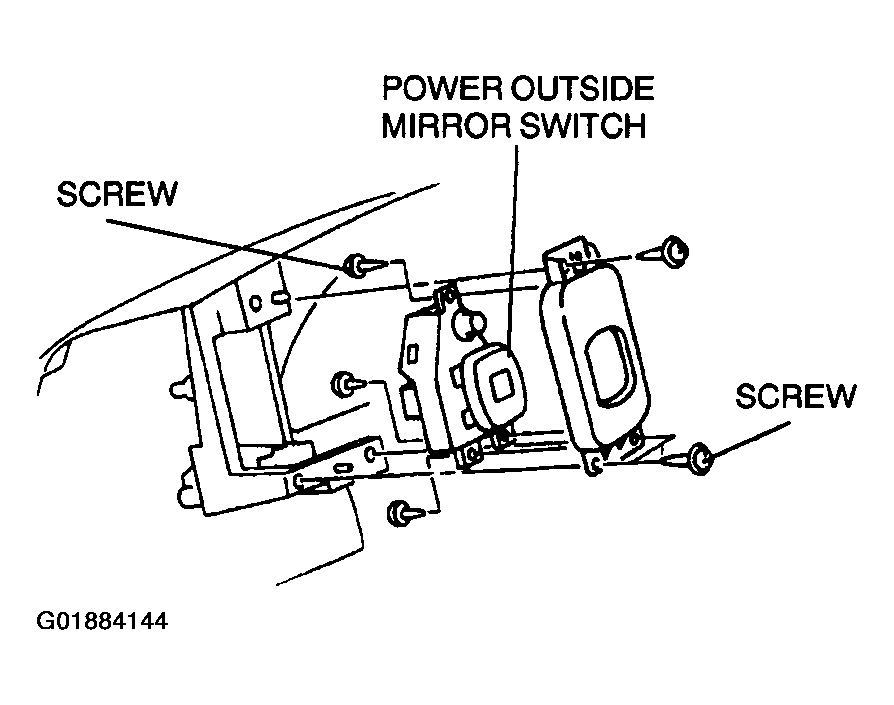

    Fig 1: Removing Screws and Power Outside Mirror Switch
    G01884144Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Install in the reverse order of removal.
